    1.8G 1805-1920M Omnidirectional Antenna Wifi 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Antenna

    1.8G1805-1920M Omnidirectional High-Power 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Waterproof Antenna

    1. Specification

    A. Electrical Characteristics
    Frequency1805-1920MHz
    Impedance50 Ohm
    S.W.R.<2.0
    Antenna Gain5dBi
    Efficiency≈70%
    PolarizationLinear
    Horizontal Beamwidth360°
    Vertical Beamwidth30±5°
    Max Power150W
    B. Material & Mechanical Characteristics
    Connector TypeN - Female

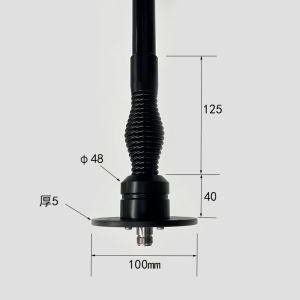

    DimensionΦ25*750mm
    ColourArmy black
    Weight1.1Kg
    Radome materialFiberglass
    C. Environmental
    Operation Temperature- 45 ˚C ~ + 85 ˚C
    Storage Temperature- 45 ˚C ~ + 85 ˚C
    Rated Wind Velocity36.9m/s
    Lighting ProtectionDC Ground

    2. Antenna - S Parameter Test Data

    2.1 VSWR


    2.2 Total Efficiency & Gain:

    Frequency(MHz)1805181018201830184018501860187018801890190019101920
    Gain (dBi)5.25.45.25.15.15.04.74.95.15.55.75.55.4
    Efficiency (%)69.270.366.864.263.863.560.665.971.974.774.069.265.8
    2.3 Radiation Pattern
    3D2D-Horizontal2D-Vertical
    1805MHz
    1880MHz
    960MHz
