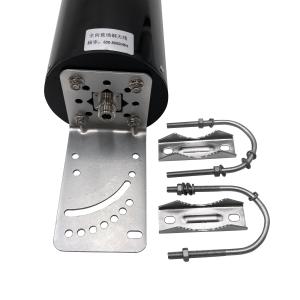

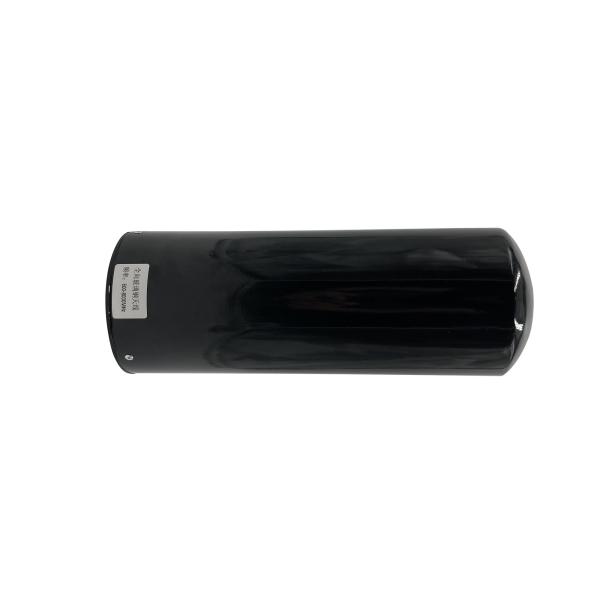

Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

    Buy cheap Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz from wholesalers

    Buy cheap Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz from wholesalers
    • Buy cheap Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz from wholesalers
    • Buy cheap Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz from wholesalers
    • Buy cheap Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz from wholesalers

    Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10502-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 5K per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

    Customize Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

    1. Specification

    A. Electrical Characteristics
    Frequency600-960MHz960-7800MHz7800-8000MHz
    S.W.R.<2.5<3.0<6.0
    Antenna Gain3dBi6dBi5dBi
    PolarizationLinearLinearLinear
    Horizontal Beamwidth360°60-230°60°
    Vertical Beamwidth50-100°20-120°20-70°
    Impedance50 Ohm50 Ohm50 Ohm
    Max Power50W50W50W
    B. Material & Mechanical Characteristics
    Connector TypeN connector
    DimensionΦ110*320mm
    Weight1.075Kg
    Radome materialFiberglass
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 80 ˚C
    Storage Temperature- 40 ˚C ~ + 80 ˚C
    Rated Wind Velocity36.9m/s
    Lighting ProtectionDC Ground

    2. Antenna - S Parameter Test Data

    2.1 VSWR


    2.2 Total Efficiency & Gain:


    Frequency(MHz)600700800900100011001200130014001500160017001800190020002100220023002400250026002700280029003000310032003300340035003600370038003900400041004200430044004500
    Gain(dBi)0.272.961.622.131.82.632.922.072.943.33.563.122.452.211.921.41.811.962.853.82.522.83.184.143.52.262.122.562.883.243.513.853.453.363.353.262.72.82.812.76
    Efficiency (%)61.2787.7580.8178.4380.8289.2683.274.7883.7581.5992.0583.7477.3873.9279.8680.077880.6584.3382.3379.883.5480.5386.3873.0169.3268.9275.1475.3582.5585.1681.1982.0588.2587.8685.1481.3781.0583.07

    83.3


    Frequency(MHz)4600470048004900500051005200530054005500560057005800590060006100620063006400650066006700680069007000710072007300740075007600770078007900800081008200830084008500
    Gain(dBi)2.322.813.333.252.842.963.493.94.014.264.755.735.935.915.65.365.365.435.214.434.414.184.294.754.945.35.134.715.075.2354.794.815.024.74.634.775.195.375.02
    Efficiency (%)76.6278.7980.4282.3273.5773.2276.3875.8775.7670.527180.1477.9976.2969.768.2872.8778.2177.6573.0973.6176.0477.6883.7680.2279.3787985.7482.7879.1680.379.9277.9968.0868.570.1472.3976.973.2

    2.3 Radiation Pattern
    3D2D-Horizontal2D-Vertical
    600MHz
    900MHz
    1700MHz

    3D2D-Horizontal2D-Vertical
    2700MHz
    5000MHz
    8000MHz
