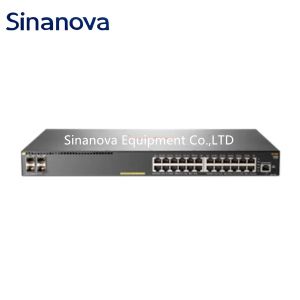

JL660A 6300M Managed 24G PoE+ Switch with Advanced Routing and
High-Speed Uplinks
Product Brief
The Aruba 6300M JL660A is a high-performance Layer 3 managed switch
designed for enterprise access, aggregation, and core deployments.
It features 24 HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports and 4
SFP56 uplink ports, providing flexible connectivity options for
modern network infrastructures. With a robust 880 Gbps switching
capacity and support for advanced routing protocols such as BGP,
EVPN, VXLAN, VRF, and OSPF, it ensures efficient and scalable
network operations. The switch also supports IEEE 802.3bt
high-power PoE, making it ideal for powering high-speed access
points, IP phones, and other IoT devices.
Product Details Table
| Item | Description |
|---|
| Product Name | Aruba 6300M 24SR5 CL6 PoE 4SFP56 Switch (JL660A) |
| Ports | 24 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports + 4 x SFP56
uplinks |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 660 Mpps |
| Form Factor | 1U rack-mountable |
| Management | Aruba AOS-CX, Aruba Central, Web GUI, CLI, SNMP |
| Special Features | Layer 3 routing (BGP, EVPN, VXLAN, VRF, OSPF), IEEE 802.3bt PoE,
VSF stacking |
| Power Supply | Dual redundant hot-swappable AC or DC options |
| Warranty | Limited lifetime |
Key Features
24 HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports supporting up to 60W
per port
4 x SFP56 uplink ports for high-speed connectivity
880 Gbps switching capacity and 660 Mpps forwarding rate
Support for advanced Layer 3 routing protocols including BGP, EVPN,
VXLAN, VRF, and OSPF
IEEE 802.3bt high-power PoE for powering high-speed access points
and IoT devices
Virtual Stacking Framework (VSF) support for scalable and
simplified management
Dual redundant hot-swappable power supplies for high availability
1U rack-mountable form factor for efficient use of rack space
Comprehensive management options via Aruba AOS-CX, Aruba Central,
Web GUI, CLI, and SNMP
Product Specification Table
| Specification | Value |
|---|
| Product Model | JL660A |
| Switching Type | Layer 3 Managed |
| Ports | 24 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56 |
| Console Port | USB-C and RJ45 |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 660 Mpps |
| MAC Address Table | 32,768 entries |
| Routing Table Size | IPv4: 16,000; IPv6: 8,000 entries |
| Latency | 1GbE: 4.24 µs; 10GbE: 1.50 µs; 25GbE: 2.91 µs; 50GbE: 3.49 µs |
| Processor & Memory | Quad-core ARM Cortex A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC |
| Power Consumption | Max 120W |
| Dimensions | 44.5 x 43.5 x 4.4 cm (1U height) |
| Operating Temperature | 0°C to 45°C |
| Humidity | 15% to 95% non-condensing |
| Certifications | UL, IEC, FCC, RoHS |
| Warranty | Limited lifetime |
Similar Models Comparison Table
| Model | Ports | Highlights |
|---|
| JL659A | 48 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56 | Higher port density for larger deployments |
| JL661A | 48 x 1GbE Class 4 PoE + 4 x SFP56 | Lower port speeds suitable for smaller networks |
| JL662A | 24 x 1GbE Class 4 PoE + 4 x SFP56 | Cost-effective solution for basic networking |
Latest Model in Same Series Table
| Model | Ports | Key Upgrade |
|---|
| JL659A | 48 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56 | Increased port density and higher PoE budget |
