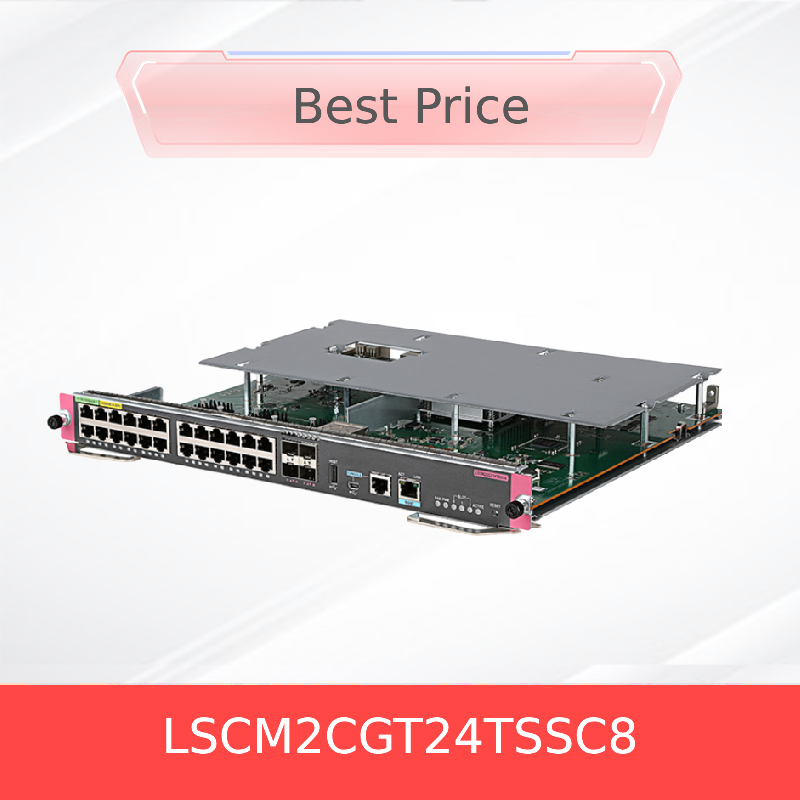

H3C LSCM2CGT24TSSC8 24-Port Gigabit + 4-Port 10G SFP+ Switch Module

1. Product Overview

The H3C LSCM2CGT24TSSC8 is a high-performance switching and routing engine module designed for the H3C S7003X switch series. It combines 24x Gigabit RJ-45 ports and 4x 10G SFP+ fiber ports, offering flexibility and high density for enterprise and data center networks. With 2GB SDRAM and 4GB Flash memory, it supports robust routing, switching, and security features.

2. Key Features

• 24x 10/100/1000M RJ-45 ports + 4x 10G SFP+ ports
• Supports dual BootROM (4MB*2) and 1MB NVRAM
• Low power consumption: 23W typical, 41W maximum
• Console and USB console ports for out-of-band management
• Compatible with H3C S7003X chassis
• Hot-swappable design for easy maintenance

3. Technology

The LSCM2CGT24TSSC8 supports IEEE 802.3, 802.3u, 802.3z, 802.3ab, and 802.3ae standards. It features auto-negotiation, MDI/MDIX, and jumbo frames. The SFP+ slots support both 1G and 10G optical modules, providing scalable uplink options.

4. Working Principle

The module operates as a line card within the S7003X chassis, handling packet forwarding, VLAN tagging, QoS, and ACL enforcement. Data is processed through the built-in switching ASIC and managed via H3C’s Comware OS.

5. Applications

• Enterprise access and aggregation layers
• Data center top-of-rack (ToR) switching
• Campus network core and distribution
• Virtualization and cloud infrastructure

6. Specifications

7. Advantages

• High port density with mixed copper and fiber support
• Energy-efficient design with low power consumption
• Advanced QoS and security features
• Seamless integration with H3C S7003X platform

8. Service & Support

We offer 24/7 technical support, worldwide shipping, and a 1-year warranty. Custom configuration and bulk order discounts are available.

9. FAQ

Q: Is the LSCM2CGT24TSSC8 hot-swappable?
A: Yes, it supports hot-swap in compatible H3C chassis.

Q: What SFP+ modules are supported?
A: It supports H3C-certified 1G and 10G SFP/SFP+ modules.

Q: Can it be used in stacking mode?
A: Yes, when installed in a supported H3C switch.

10. Precautions

• Use only compatible H3C optical modules.
• Ensure proper chassis cooling and power supply.
• Avoid static electricity during installation.
• Refer to H3C compatibility guides for cabling.
