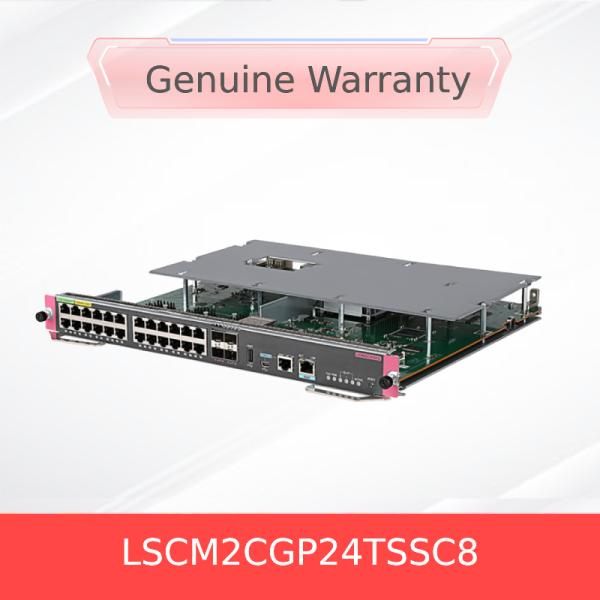

    H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module

    Ask Lasest Price
    Price : Negotiate
    Brand Name : H3C
    Model Number : LSCM2CGP24TSSC8
    Payment Terms : T/T
    Supply Ability : Supply by project/batch
    Delivery Time : Based on inventory
    • Product Details
    • Company Profile

    H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module

    LSCM2CGP24TSSC8 is not just a simple service board, but a main control board module that integrates both the switching engine and the routing engine. Such modules usually have the following characteristics:

    • More powerful functions: In addition to providing ports, they may also take on core tasks such as system control and route computation.
    • Critical placement: Typically installed in the main control slot of a switch.
    • Higher price: Due to their core functionality, they are usually more expensive than ordinary service boards.

    Notes before purchase and use:

    • Compatibility is key: Before purchasing, be sure to confirm that the module is compatible with your existing or planned H3C switch models (e.g., S7500X-M-G, S7503X-M-G series), and check the required minimum software version.
    • Optical modules sold separately: SFP and SFP+ optical interfaces require corresponding optical modules or cables to be purchased separately before they can be used.
    Product Specifications
    attributespecification
    Flash4GB
    BootROM4MB*2
    NVRAM1MB
    SDRAM2GB
    Veneer size (H×W×D).40mm×399mm×355mm
    Power consumption of the board23W~45W
    The type and number of interfaces·1consoleport
    ·1xUSB Consoleport
    ·1network management port
    ·1mainUSBport
    ·4SFP+interfaces
    ·24SFPinterfaces
    Interface transmission rate·Consoleport:9600bps~115200bps(default9600bps)
    ·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default
    ·Network management port:10/100/1000Mbps, half-duplex/full-duplex
    ·SFP+interface:10Gbit/s,1 Gbit/s,100 Mbit/s
    ·SFPinterface:1 Gbit/sand100 Mbit/s
    Cable and maximum transmission distance are available·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m
    ·USB Consoleinterface:USB-ABcable, transmission distance ≤10m
    ·Network management port:Category5ormore twisted pair cable, transmission distance5m
    ·SFP+interface:SFP+optical transceiver andSFPoptical transceiver
    ·SFPinterface: SFPoptical module
    The host type that the board is compatible withS7003X
