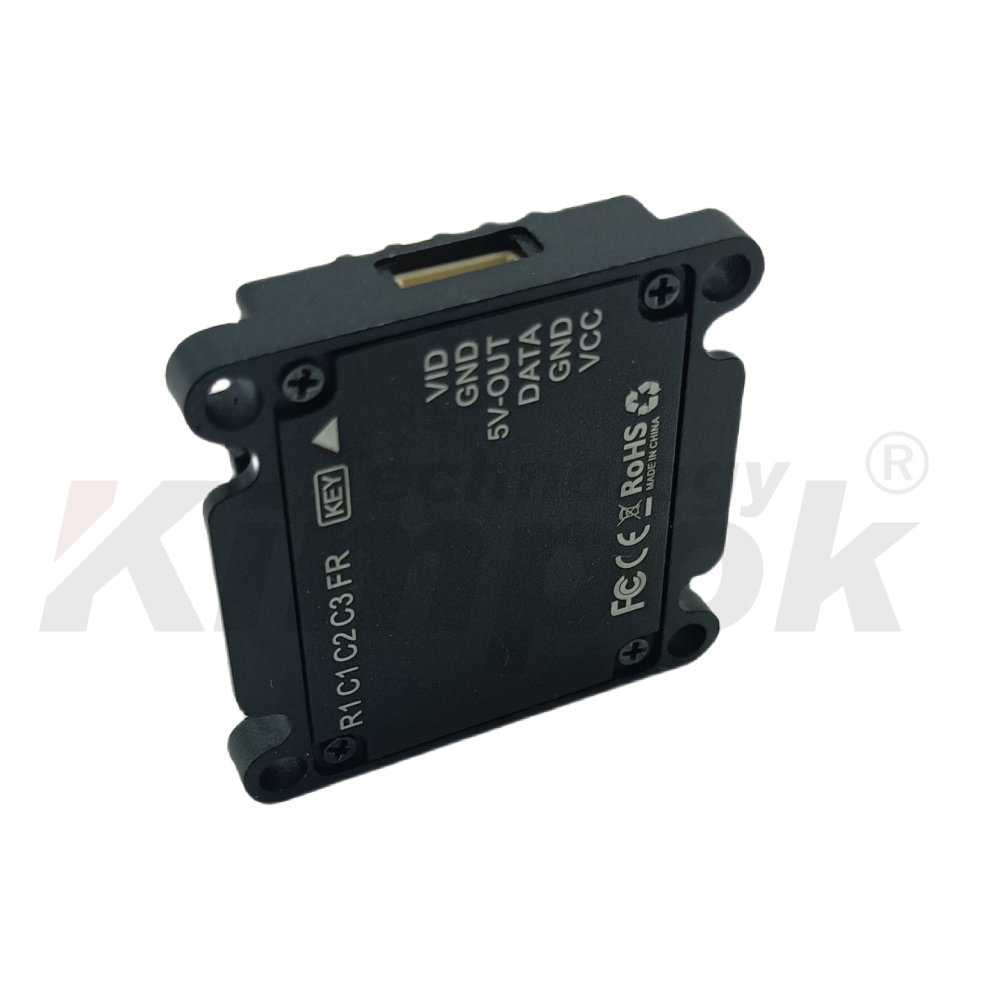

4.9 GHz 5.8 GHz Dual Band 2.5W UAV Video Transmitter with 20 km
Range
Description:
Power adjustment:
This video transmitter has 5 power levels: 25/400/800/1500/2500 mW.
To adjust the power, press and hold the button for 6 seconds, after
which the video transmitter will go into the power adjustment mode.
The power is selected in order by pressing the button once. The
number of flashes (blinks) of the red indicator R1 will correspond
to the selected power: 1 blink - 25 mW, 2 blinks - 400 mW, etc.
(pay attention to: “3. Video transmitter power indicator”). To save
the selected power, you must wait 5 seconds, after selecting the
power - the video transmitter will save the value. (When adjusting
the power of the video transmitter - the red power indicator R1
blinks, and the other indicators go out).
Adjusting frequency and channel selection:
Switching frequency group (range grid):To set up the range grid, you need to press the button and hold it
for 2 seconds. The video transmitter will go into the range grid
setting mode, pressing the button once helps to select the range in
order. The number of flashes (blinks) of the blue FR indicator
corresponds to the selection of the range grid: 1 blink - range
grid A (FR1), 2 blinks - range grid B (FR2), etc. (pay attention
to: “4.Frequency table” FR). To save the selected range grid, you
need to wait 5 seconds, the range grid will be saved. (When
selecting a range grid - the blue FR indicator blinks, and the
other indicators go out).
Switching channels:To switch video transmitter channels, you need to press the button
once and select the channel you need. Green indicators (LEDs) C1 C2
C3 are responsible for displaying channels. Green LEDs are off –
channel 1, the first green LED is on – channel 2, etc. (pay
attention to: “4.Frequency table” CH C1/C2/C3). To save the
selected channel, you need to wait 5 seconds, the channel will be
saved.
Recommendation for choosing frequency range and channel:
To select the frequency 4.9Ghz: you need to transfer the video
transmitter to the frequency grid O(FR7) (the blue indicator (LED)
should blink 7 times). Then select channel 2 (the first green
indicator is on). This frequency range is the most optimal, and
corresponds to the frequency: 4921 It is not recommended to use a
lower frequency 4884 or the frequency grid R(FR8), since the
standard antenna is not designed for this frequency range.
Video transmitter parameters
Working voltage | 7-36V |
Current consumption | ≤450mA@12V, 800mW ≤850mA@12V, 2500mW |
Output power | PIT/25mW/400mW/800mW/1500mW/2500mW |
Frequency range | 4.9GHz – 5.8GHz |
Number of channels | 64CH |
Antenna connector | MMCCX |
Video format | NTSC/PAL |
Video transmitter protocol | VTX (IRC Tramp) |
Completeness | VTX BeastFPV 4.9-5.8GHz 64CH x 1 4.8-6GHz 3DBi RHCP Antenna x 1 6Pin SH1.0 Wire x1 |
