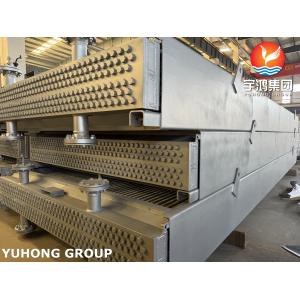

API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW)

    Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers

    Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers
    • Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers
    • Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers
    • Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers
    • Buy cheap API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW) from wholesalers

    API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW)

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : Boiler Feed Water​
    Certification : API 661, ASME SECTION VIII, PED 97/23/EC, EN13445, PED/2014/68/EU AD 2000
    Price : 2000 ~ 10M usd
    Payment Terms : L/C, T/T
    Supply Ability : 10000 tons/month
    Delivery Time : 45---150 DAYS
    • Product Details
    • Company Profile

    API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW)

    API 661 Type C Forced Draft Air Cooler with SA179 Fin Tubes for Boiler Feed Systems(BFW)


    Forced Draft Type - Designed with tube bundles located on the discharge side of the fan.


    Category​​​​Parameter​​​​Value/Description​​
    ​​Design Parameters​​Design Temperature212°F (Max) / 49°F (Min)
    Maximum Working Pressure (MWP)256 PSIG
    Test Pressure333 PSIG
    Flow ArrangementCrossflow
    ​​Tube Bundle​​Number of Tube Rows3
    Number of Tube Passes6
    Tube Dimensions (OD × BWG)5/8" OD × 16 BWG
    Tubes per Section/Length212 tubes / 16 ft
    Fin TypeHI-EFF (High Efficiency)
    Fin MaterialAluminum (AL)
    TurbulatorsAccelerators
    ​​Material Specifications​​Tube MaterialSA179 Carbon Steel
    Nozzle MaterialSA350LF2 Alloy Steel
    Header MaterialSA516-70 Carbon Steel
    Plug MaterialSA350LF2 Alloy Steel
    ​​Structural Details​​Header TypeBox-Type
    Nozzle Rating/Type150RF (150 lb. Raised Face Flanges)
    Inlet Quantity/Size1 inlet / 3"
    Outlet Module Quantity/Size1 outlet module / 3"
    Corrosion Allowance0.0625 in
    Grooved TubesheetDouble Grooved (DBL)
    Plug TypeShoulder-Type
    ​​Standards & Certifications​​ASME Code & National BoardCompliant (YES)
    CRN (Canadian Registration)AB/BC/SK
    Additional SpecificationsAPI 661
    ​​Controls & Accessories​​LouversAutomatic (AUTO)
    Protective ScreenIntegrated (INT)
    PWM (Pulse Width Modulation)YES
    ​​Inspection & NDT​​Weld Inspection Requirements- ​​FX​​: 100% X-ray of all longitudinal seams, attachments, and nozzle butt welds.
    - ​​SH​​: Spot X-ray (1 longitudinal seam & 1 end closure per header).
    - ​​BX​​: 100% X-ray of all nozzle butt welds.
    - ​​UT​​: 100% ultrasonic testing (UT) of all header seams, attachments, and nozzle butt welds.
    - ​​H​​: Hardness testing.

    Documents

    • ASME Code
    • Calculations
    • Data Reports
    • Nameplate
    • Inspection Check lists
    • Material Test Reports
    • Stress Relieve Charts
    • X-Ray Test Reports
    • Ultrasonic Test Reports
    • Dye Penetrate/Magnetic Particle Test Reports
    • Hydrostatic Test
    • Gauge Certificate
    • Hydrostatic Test
    • Certification Reports
    • Hardness Test Reports
    • Run Tests
    • Nozzle Load Calculations
    • Weld Maps/NDE Maps
    • Weld Procedures
    • Welder Log & Qualifications

    ​​Applications​​

    • Pre-cooling boiler feed water in ​​steam generation systems​​.
    • Process cooling in ​​oil & gas​​, ​​petrochemical​​, and ​​HVAC​​ industries.
    • Temperature control for ​​waste heat recovery​​ and ​​closed-loop systems​​.
