Oil Immersion Test Chamber IEC 62368-1 For Rubber & Enameled Wire
Testing Oil Resistance Tester
Product Overview:
This Oil Immersion Test Chamber is designed for evaluating the oil
resistance of rubber and plastic insulators or enameled wires, as
required by ASTM D471-98 and IEC 62368-1:2018 clause Y.4.5. The
testing method involves immersing samples in hot oil and then
evaluating their tensile strength or paint film quality, depending
on the material.
The system offers precise temperature control, efficient heating
and mixing, and multiple safety features, making it suitable for
quality control labs, manufacturing validation, and material
durability testing.
Standards Compliance:
ASTM D471-98
IEC 62368-1:2018 Clause Y.4.5
Applications:
Oil resistance testing of enameled wires, rubber materials, and
plastic insulators
Tensile strength analysis after oil immersion
Paint film inspection for enameled wire durability
Key Features:
Six stainless steel test cups (ф38mm x 300mm height), customizable
sizes available
Optional rubber tight plugs or aluminum loose plugs for test cup
lids

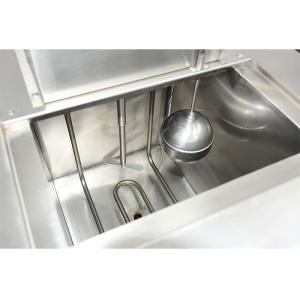

Working chamber size: 320×300×350mm, fully stainless steel
Built-in sample suspension system (six devices, three dumbbells
each)
Mixing system: 40W motor with internal circulation for temperature
uniformity
Heating system: 3000W solenoid heater
Temperature range: Room temp +20℃ to 300℃; accuracy: 0.1℃;
uniformity: ±1℃
Smart PID controller with high-precision K-type thermocouple
Safety features:
Over-temperature cut-off
Oil level auto power-off
Splash protection for hot oil
Timing function: Up to 999.99 H/M/S
Construction: Stainless steel inner & outer box (dimensions:
400×530×550mm)
Power supply: AC 230V, 50Hz
