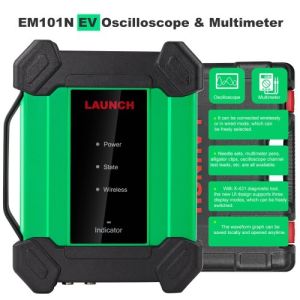

LAUNCH EM101N EV Oscilloscope & Multimeter
This EM101N is composed of hardware and software. Hardware includes
EM101N module and connection wire. The Oscilloscope and Multimeter
APP are installed on diagnostic tool.
Automotive oscilloscopes assist the auto repair technician with the
ability to quickly identify faults on automotive electronic
equipment and wiring. The oscilloscope sweep speed is far greater
than the signal frequency of such vehicles, usually 5-10 times of
the measured signal and quickly acquire the circuit signal while
slowly displaying the waveform for observation and analysis.
The built-in multimeter provides simple measurements to test
voltage, current and resistance to help determine faults.
Product Features:
1. Combined with the characteristics of dual-channel oscilloscope
and multimeter.
2. The anti-fall rubber sleeve increases the protection of the
product, and the unique fuse plug-in design is convenient for
replacement.
3. With X-431 diagnostic tool, it can be connected wirelessly or in
wired mode, which can be freely selected.
4. With X-431 diagnostic tool, the new UI design supports three
display modes, which can be freely switched.
5. Needle sets, multimeter pens, alligator clips, oscilloscope
channel test leads, etc. are all available.
Product Specifications:
DC Voltage: Automatic range, test range: ±600V
AC Voltage: Automatic range, test range: ±600V
DC Current: Automatic range, test range: ±10A
(It is necessary to connect an external sensor for large range
current.)
AC Current: Automatic range, test range: ±10A. Average value
measurement
(It is necessary to connect an external sensor for large range
current.)
Resistance: Automatic range, test range: 0~6MΩ
On and off: Tweet when less than 30Ω
Diode: 0.5V—2.0V
Battery Capacity: 3100mAh
Bandwidth: 10MHz
Channel: Two analog channels
Real-time Sampling Rate (Max): 50MHz/s
Time Base Range: 1us/div～10s/div, step by 1～2～5 times
Sampling Mode: Normal sampling, peak detection, average
Buffer Memory: 1M
Input Coupling: DC, AC, grounded
Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF
Vertical Sensitivity: 2mV/div～5V/div
Vertical Resolution: 8bits
Maximum Input Voltage: 40V peak value(DC + AC peak value)
Probe Attenuation Factor: 1X, 10X, 100X(probe support required)
Trigger Type: Edge trigger, pulse width trigger
Trigger Mode: Auto, Normal, Single
Automatic Measurement: Peak-to-peak value, Average value, Maximum
value, Minimum value, Top value, Bottom value, Frequency, Period
Package includes:
1pc x EM101N main unit
2pcs x BNC to 4mm test leads
2 pairs x Multimeter test pen(black+red)
2 pairs x Multimeter probes(black+red)
4pcs x Crocodile clips
1pc x Black probe pins suite(5probes+20pins+2caps)
1pc x Type A-Type B USB cable
1pc x User manual
1pc x UK Power plug
1pc x EU Power plug
1pc x AU Power plug
1pc x US Power adapter
