    Rexroth Direction Valve 4WRE6W08-2X/G24K4/V For High-Pressure And High-Flow Applications

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WRE6W08-2X/G24K4/V
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WRE6W08-2X/G24K4/V For High-Pressure And High-Flow Applications

    Product Description

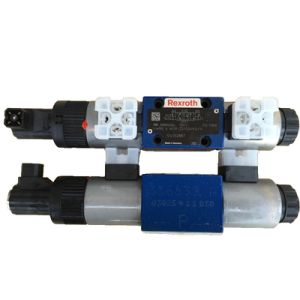

    The Bosch Rexroth 4WRE6W08-2X/G24K4/V (R900941264) is a state-of-the-art industrial hydraulic valve that offers precise control over the direction and flow of oil. This direct-actuated spool valve, with its size and symbol W, is designed for high-performance applications requiring reliable functionality. The valve features integrated electronics for electrical actuation with an external amplifier, ensuring accurate operations with its internal piston position feedback. Equipped with a connector pole PE according to EN for electrical connections, this valve supports a maximum pressure capacity and allows for a substantial flow rate. The type of connection is subplate mounting, following the connection diagram standards of NFPA T.. R D SizeCETOP D and ISO. It operates on a supply voltage of VDC and has multiple switching positions.


    The hydraulic fluid compatibility includes HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR types with FKM seals ensuring durability in diverse conditions. Its design includes a housing that provides a connection surface and houses the control spool which is actuated directly by the proportional solenoids equipped with central threads. This Bosch Rexroth valve ensures progressive flow characteristics when transitioning from P to A and B to T through orifice-type cross-sections. The construction allows for spring-centered control spool positioning when deenergized and mechanical central positioning by return springs in solenoids. It's important to note that internal leakage can occur due to its design principle but can be managed throughout its lifecycle. The 4WRE6W08-2X/G24K4/V is ideal for various demanding hydraulic applications where precise flow control is crucial. Its robust construction matched with sophisticated electronics makes it suitable for complex industrial systems requiring dependable directional control of hydraulic fluids.


    BrandRexroth
    Model4WRE6W08-2X/G24K4/V
    Max. flow80
    Type of connectionSubplate mounting
    Size_CETOPD03
    Nominal flow8
    Supply voltage24 VDC
    Number of switching positions3
    Weight2.12
    SealsFKM


    FAQ


    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.


    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.


    Q3: What's your payment terms ?
    A3: By T/T,LC AT SIGHT,100% full payment.


    Q4: How long is your production lead time?
    A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.


    Q5: When can I get the quotation ?
    A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
