Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System

    Buy cheap Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System from wholesalers

    Buy cheap Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System from wholesalers
    • Buy cheap Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System from wholesalers
    • Buy cheap Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System from wholesalers

    Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WRAE6W15-23/G24N9K31/F1V
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WRAE6W15-23/G24N9K31/F1V With Integrated Electronics System

    Product Description

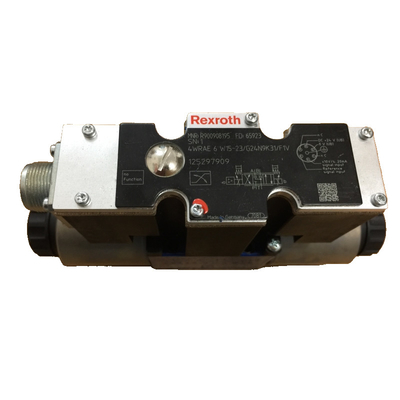

    The Bosch Rexroth 4WRAE6W15-2X/G24N9K31/F1V (R900908195) is a high-performance proportional directional valve designed for precise control of the direction and magnitude of fluid flow in hydraulic systems. This direct-operated valve is configured for plate design mounting and features an integrated electronics system that manages the operation of its proportional solenoids. The solenoids, which have a central thread and a detachable coil, are essential for the valve's functionality, allowing for smooth and responsive operation. The setup of this Bosch Rexroth valve includes a robust housing with a connection surface, a control spool balanced by compression springs, and two solenoids that act directly upon the spool. In its default state, with solenoids de-energized, the control spool remains in the central position due to the compression springs.


    Upon energization of one of the solenoids, the control spool shifts proportionally to the electrical input signal, thereby adjusting fluid flow through orifice-type cross-sections that provide progressive flow characteristics. This particular model is equipped with two spool positions (type WRA...A...), meaning it operates with only one solenoid (solenoid a) while featuring either a plug screw or cover in place of the second solenoid. This configuration simplifies its design while still maintaining effective control capabilities. For proper functioning, it's important to ensure that the tank line does not run dry; if necessary under certain installation conditions, a preload valve with approximately 5 bar pressure should be installed. The 4WRAE6W15-2X/G24N9K31/F1V valve is suitable for subplate mounting with porting patterns conforming to ISO standards. It has been engineered to handle maximum operating pressures up to 350 bar and maximum flow rates up to 15 liters per minute. Its spring-centered control spool ensures reliable return to neutral position when de-energized, contributing to system stability and safety.


    BrandRexroth
    Model4WRAE6W15-23/G24N9K31/F1V
    Nominal Flow Qn1300 l/min
    Actuation MethodManual
    Power Consumption9W
    Valve PositionNormally Closed
    OperationOn/Off
    Sourcerating24V
    Temperature Range-20°C to 80°C
    ColorBlue
