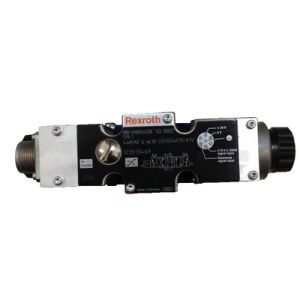

    Rexroth Direction Valve 4WRAE6W30-23/G24K31/A1V With EN Standard Electrical Connection

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WRAE6W30-23/G24K31/A1V
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WRAE6W30-23/G24K31/A1V With EN Standard Electrical Connection

    Product Description


    The Bosch Rexroth 4WRAE6W30-2X/G24K31/A1V (R900954078) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, in accordance with its spool symbol W. This direct-actuated spool valve features integrated electronics for electrical actuation and is suitable for subplate mounting with connection ports conforming to the ISO standard. The valve operates at a maximum pressure, allowing for a nominal flow rate. Characterized by its size and CETOP D designation, the 4WRAE6W30-2X/G24K31/A1V employs analog connectivity, accepting command values from 0 to 10 V. It is compatible with a variety of hydraulic fluids including HL, HLP, and more, ensuring versatility across different hydraulic systems. The electrical connection utilizes a Connector pole PE according to EN standards, ensuring secure and reliable power supply.


    The valve's function relies on its housing that includes a control spool balanced by compression springs and actuated by proportional solenoids with central thread. These solenoids are controlled via the integrated electronics without the need for external feedback mechanisms. In its default state, the control spool is centered by the springs but can be shifted proportionally to the input signal by energizing one of the solenoids. This model specifically comes with two spool positions (type WRA...A...), differentiated from three-position models by having only one proportional solenoid and a plug screw or cover in place of the second solenoid. The design ensures that when de-energized, the control spool returns to its central position due to spring force. Important considerations for installation include maintaining fluid in the tank line and potentially installing a preload valve under certain conditions. With its robust construction and precise electronic control capabilities, this Bosch Rexroth valve is engineered for optimal flow direction management within various industrial hydraulic systems.


    BrandRexroth
    Model4WRAE6W30-23/G24K31/A1V
    Max. flow42
    Type of connectionSubplate mounting
    Size_CETOPD03
    Nominal flow26
    Supply voltage24 VDC
    Number of switching positions3
    Weight2.221
    SealsFKM
