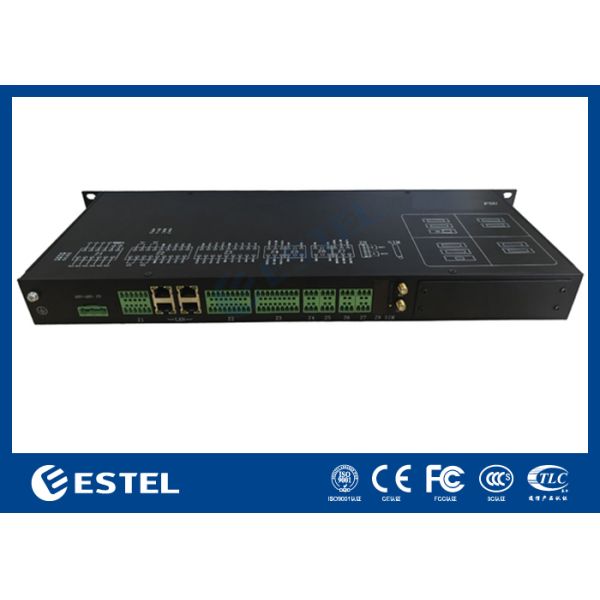

FSU PM5000TT3.0 Advanced Power Distribution Unit for
Telecommunication Station with Intelligent Protocols Processing
PM5000 Field Supervision Unit
1. FSU Description
PM5000TT3.0 is a high-performance low-cost FSU (Field Supervision
Unit) device
integrating Data Acquisition, intelligent protocols processing and
communication
module.
As a smart DAC(Data Acquisition Controller) installed in every
telecommunication
station or base station in Power Supply & Environment Surveillance
System, FSU
accesses different sensors to get various environment data and
non-intelligent
devices status and communicates with intelligent devices (including
switching power
supply, Lithium Battery BMS, air-conditioner, etc.) via RS232/485,
Modbus or other
kinds of communication interface. FSU captures the following data
in real time and
delivers to surveillance center via B-Interface, SNMP protocol.
Power Supply Parameters
Voltage and current of 3-phase AC power supply
Power Rate and Power Factor of AC power supply
Voltage and current of -48VDC Switching power supply
Operating Status of Intelligent Switching power supply
Charging/discharging Voltage and current of backup battery group
Voltage of Single cell battery
Surface Temperature of Single Cell battery
Operating Status of Intelligent Air-Conditioner
Remote Control of Intelligent Air-Conditioner
Status and remote control of Diesel Generator
Embedded over 1000 intelligent devices protocols
Embedded WEB server
Environment Status and Control
Temperature and Humidity - via T&H Sensor
Smoke status - via Smoke Sensor
Motion Detection - via Infrared and Microwave Dual Passive Sensor
Water Logging Status - via Water Sensor
1PM5000 Field Supervision Unit
Video Snapshot and Storage - via IP camera
Remote Lighting Control - via Lighting controller
Remote Entrance Control - via Entrance Guard Controller
2. FSU Dimension
L: 482mm,W: 220mm,H; 44mm
3. FSU Operation Environment
3.1 Environment Temperature
Operation Temperature: -20℃～60℃
Storage & Transportation Temperature: -40℃～70℃
3.2 Environment Humidity
Operation Relative Humidity:<95%
Storage & Transportation Relative Humidity: <95%(40±2℃)
3.3 Altitude
<5000m
3.4 Protection Level
IP20
4.1 Safety Precautions
Please read the following terms carefully before using this
product. Improper
installation and usage of this product might cause personal injury
and product
damage.
Operators should abide by local laws and regulations, and safety
precautions
in this manual should be supplemented only by local safety
regulations.
This product can only be used in indoor or outdoor cabinets. It
is forbidden to
use PM5000TT3.0 in inflammable, explosive gas or smoky environment.
Input power supply voltage should be correct according to this
user manual.
Do not use water to clean any part of the device and wear
watches, bracelets,
bracelets, rings and other conductive objects when operating the
devices.
The metal tools used in the installation must be insulated to
avoid the short
circuit of the power supply and battery.
Installation or maintenance operations must comply with the user
manual.
Please measure the voltage of the contact point before contacting
the
surface of conductor or connection ports.
It should be checked routinely according to the user manual after
installation
before power on.
7.2 Field Installation Steps
7.2.1 Mount FSU in the cabinet.
7.2.2 Connect cable from target device to the connector terminals
of FSU
