24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack​

SMT reel storage, SMD tape reel hanging trolley, single and double peak grid racks

[Product name]: SMT reel storage
[Product brand]: CNSMT
[Product material]: stainless steel
[Product description]:

MD tape reel hanging trolley, single and double peak grid racks
[Product weight]: about1 5KG
[Dimensions]: 907*457 or 1215*457 or customize
[Applicable models]: SMT tape reel storage

SIZE option:

How many sizes are there?
length
Both single and double peaks have two lengths of 907 and 1215MM
width
The width of the single and double peak layer net is fixed at 457MM
high
Height 600-2200MM arbitrarily choose
Number of layers
2, 3, 4, 5, 6, 7 layers optional

Highly customizable layer number optional
Adjustable layer spacing
Product name: SMT tray car Chrome-plated material rack specifications: length * width * height (unit: mm)
2: L1215*W457*H1500mm 1: L907*W457*H1500mm

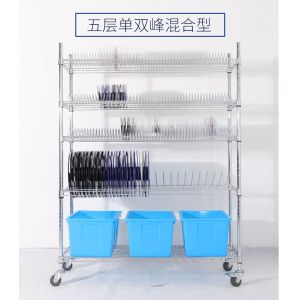

Configuration: 3 layers of bimodal mesh, 1 layer of unimodal mesh, 1 layer of flat mesh with PVC wheels (two brakes, two no brakes)
One U-shaped handle.
It can be configured at will, the number of layers can be added or subtracted, and the installation is convenient and quick. It can be configured according to customer needs.

Name:
SMT material rack :
Chrome-plated carbon steel/PPI material specifications:
Length 1215*Width 457mm/Length 907*Width 457mm
Index:
Main wire diameter 6.0mm, secondary wire diameter 3.0mm, splash wire diameter 4.5mm, mesh:
Double-peak mesh single-peak mesh flat mesh column:
The diameter is 25.4mm and the height can be selected from 500-2200. 1 Anti-static value: 105-1089.
2Durable structure. The single-layer load-bearing capacity can reach 180KG. Function:
3 Easy to install. It can be installed on site without tools. 4 Free DIY. Casters, armrests and other auxiliary accessories can be added.

High-quality carbon steel chrome plated
Made of high-quality carbon steel, advanced chromium plating process, special thickening treatment, rust and corrosion prevention
Professional treatment, smooth and flat surface
The product has been treated by pickling, decontamination, polishing and other technical treatments, smooth and smooth, without burrs. Natural high-strength wear resistance.
Thick chrome plating, anti-rust, anti-corrosion
The special chrome layer is thickened, and the workmanship is more refined, which distinguishes the inscription dust mat of other products.

The thick chromium layer ensures that the product is not easy to rust and corrosion resistance,
High temperature resistance up to 500℃, wear resistance
Chrome plating has good heat resistance, high heat below 500℃, its gloss and hardness are uniform
No obvious change, high-strength wear resistance, durable

Slub design height adjustment
The column adopts bamboo tube design, combined with the conical clip, the height of the mesh can be adjusted at will
Fully automatic CNC grooving is used to ensure that the spacing and depth of each groove are consistent, without burrs, and not hurting hands.
Each section is 25mm, and every five sections is equipped with a double groove, which can be fine-tuned to ensure the same height of the four corners.

Diameter of slub tube: 25.4mm Interval between grooves: 25mm Wall thickness of slub tube: 1.2mm
It is normal for the clip to be installed with gaps
All clips are made of ABS native environmentally friendly plastic, which is strong and wear-resistant. There are more protruding slots inside and more powerful locking grooves, which are not easy to fall.
When installing, the clip arrow points upwards
Clip cone design freely adjust the height

Installation Notes
1. First put the end of the slub tube with the wheel facing upward, and then put the wheel sideways into the slub tube opening. The wheel is slightly inclined to follow the semi-circular card pattern at the wheel bayonet. (The snap ring notch outwards )
2. Twitch down vigorously to snap the card pattern into the slub tube.
3. The four columns are placed side by side, and the clamps are installed at the same height of each column to fix the tube. (When installing the clamps, please put the smaller end upwards)

4. First put a net piece vertically on the ground, put the column into the four-end vertebral sleeve (into the larger end of the spinal canal), and then erect the layer net!
5. At this time, the second mesh can be installed. Before installation, please measure the height of the items to be placed. Install the clips on the four pillars, and then load the mesh from top to bottom.
6. All meshes are installed in the same way, after the combination is completed,
Note: After confirming that the mesh is adjusted to the horizontal state, it can be used.

Keywords:

Solder paste warm up machine, digital smt solder paste recovery machine,

SMD tape reel storage, smt reel hanging cart, pcb hanging trolley, smt trolley,

SMT tape cutting machine, SMT tape cutter, smt waste reel carrier, SMT full auto tape cutter, SMT Samsung automatic cutting tape machine

SMT Samsung SM481 automatic cutting tape machine,SMT Samsung SM482 automatic cutting tape machine,SMT Samsung SM471 automatic cutting tape machine,SMT Samsung SM411 automatic cutting tape machine,SMT Samsung SM421 automatic cutting tape machine,SMT juki ke750/2010/2020/2050/2060/2070/2080/ fx-1r, fx-3r automatic cutting tape machine

SMT stencil printer, smt solder paste printing machine, smt yamaha pick and place machine, smt assembly line, led assembly line, samsung assembly line, fuji assembly line, assembly line, juki assembly machines, smt reflow oven, smt conveyor, pcb loader and unloader, SPI,AOI, Stencil inspection machine,Online smt reflow oven temperature monitoring system,pcb buffer, pcb stacker
