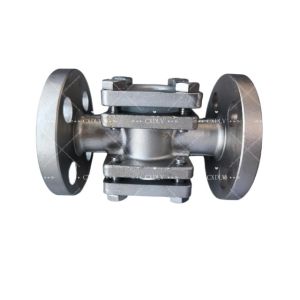

Product Description:
The Flanged Sight Glass is a versatile and reliable product
designed for various industrial applications. Featuring a flange
connection of ASTI16.5, this sight glass provides a secure and
robust connection for seamless integration into your system. The
flange connection ensures stability and ease of installation,
allowing for quick and efficient setup.
One of the key components of the Flanged Sight Glass is its
high-quality borosilicate glass. Known for its exceptional clarity
and durability, borosilicate glass offers superior visibility and
resistance to thermal shock. This ensures a clear view of the
internal processes and enables operators to monitor the flow of
water, oil, and gas with precision.
The Flanged Sight Glass is compatible with a wide range of mediums,
including water, oil, and gas. This versatility makes it a valuable
asset in industries where different types of fluids are handled,
providing operators with the flexibility to monitor various
processes effectively.
Constructed from stainless steel, the body of the Flanged Sight
Glass is durable and corrosion-resistant, ensuring long-lasting
performance in demanding environments. The stainless steel
construction not only enhances the structural integrity of the
sight glass but also helps maintain hygiene standards, making it
suitable for industries with strict cleanliness requirements.
Available in a size range from DN15 to DN150, the Flanged Sight
Glass can accommodate different pipe sizes and flow rates, making
it suitable for a wide range of applications. Whether you need a
small-scale monitoring solution or a larger sight glass for
high-flow processes, the size range ensures that you can find the
right fit for your specific requirements.
Equipped with a flanged see-through window, the Flanged Sight Glass
provides operators with a clear and unobstructed view of the
internal processes. The see-through window offers a direct line of
sight into the system, allowing for real-time monitoring and visual
inspection of the fluid flow. This visibility is crucial for
detecting any abnormalities or blockages in the system, enabling
prompt maintenance and troubleshooting.
The Flanged Sight Glass also features a flanged sight opening that
allows for easy access to the internal components for maintenance
and cleaning. The sight opening provides a convenient point for
inspection, ensuring that the glass remains clean and free from
debris that could obstruct the view. This accessibility simplifies
routine maintenance tasks, contributing to the overall efficiency
and reliability of the sight glass.
With its robust construction, high-quality materials, and versatile
design, the Flanged Sight Glass is a dependable solution for
monitoring fluid processes in various industrial settings. Whether
used in water treatment plants, oil refineries, or gas distribution
facilities, this sight glass offers unparalleled visibility,
durability, and performance, making it an essential component for
ensuring smooth and efficient operations.
Features:
- Product Name: Flanged Sight Glass
- Applicable Standards: ASTM B16.34
- Flow Indicators: Provide visual into pipelines or sealed vessels
- Body Material: Stainless Steel
- Medium: Water Oil Gas
- Temperature Range: -20°C~185°C
Technical Parameters:
| Test and Inspection | API598 |
| Medium | Water Oil Gas |
| Glass | Borosilicate |
| Seat | PTFE |
| Temperature Range | -20°C~185°C |
| Pressure Rating | GB PN16 |
| Size Range | DN15~DN150 |
| Applicable Standards | ASTM B16.34 |
| Body Material | Stainless Steel |
| Flow Indicators | Provide visual into pipelines or sealed vessels |
Applications:
Flanged Sight Glass, also known as Flanged Sight Point or Flanged
Visual Flow Indicator, is a critical component widely used in
various industrial applications due to its transparency and
durability. The CXDLV Sight Glass, certified with CE&ISO,
originates from China and is available for purchase with a minimum
order quantity of 1pc. The price is negotiable, and multiple
payment terms such as T/T, Paypal, Western Union, D/A, L/C, D/P,
and MoneyGram are accepted.
With a delivery time of 5~25 work days and a supply ability of
500pcs/month, the CXDLV Sight Glass comes in suitable plywood cases
tailored to different valve structures for safe transportation. The
temperature range of -20°C~185°C makes it suitable for a wide range
of operating conditions.
The body material of the Sight Glass is constructed from
high-quality stainless steel, ensuring longevity and resistance to
corrosion. It can handle working pressures of up to 16 bar for the
standard range and up to 40 bar for the high-pressure range.
Designed to accommodate mediums such as water, oil, and gas, the
CXDLV Sight Glass is available in various valve sizes ranging from
DN15 to DN200. This versatility makes it suitable for applications
in industries such as chemical processing, pharmaceuticals, food
and beverage, and many more.
Whether monitoring flow rates, inspecting processes, or ensuring
system integrity, the Flanged Sight Glass from CXDLV provides a
clear view of the fluid passing through the system, allowing for
efficient operation and maintenance. Its robust construction and
reliable performance make it an essential component in industrial
fluid handling systems.
Support and Services:
The Flanged Sight Glass product comes with comprehensive Product
Technical Support and Services to assist customers with any issues
or questions they may have. Our team of experts is available to
provide guidance on installation, troubleshooting, and maintenance
to ensure optimal performance of the sight glass. Additionally, we
offer training sessions and documentation to help users make the
most of their product experience.
Packing and Shipping:
Product Packaging:
The Flanged Sight Glass is carefully packed in a sturdy cardboard
box to ensure safe transportation. The glass is securely encased in
foam padding to prevent any damage during shipping.
Shipping:
Orders for the Flanged Sight Glass are processed promptly and
shipped via a reliable courier service. Customers will receive a
tracking number to monitor the status of their delivery.
FAQ:
Q: What is the brand name of this product?
A: The brand name is CXDLV.
Q: What is the model number of the Flanged Sight Glass?
A: The model number is Sight Glass.
Q: What certifications does this product have?
A: This product is certified with CE&ISO.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What are the accepted payment terms for purchasing this product?
A: The accepted payment terms are T/T, Paypal, Western Union, D/A,
L/C, D/P, and MoneyGram.
