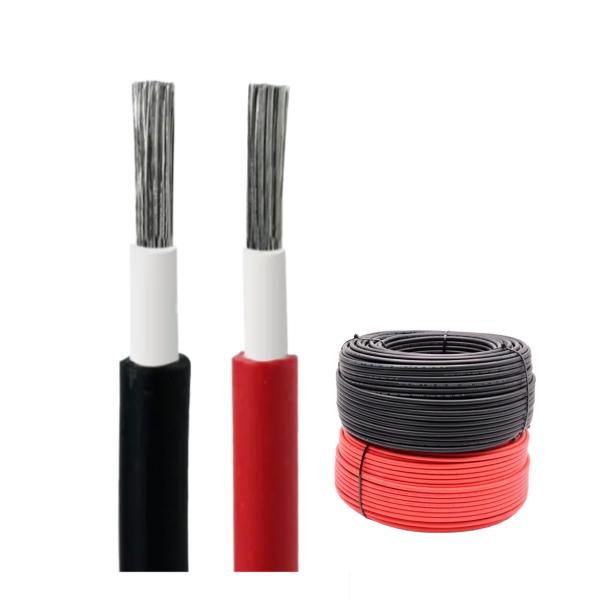

AC 0.6/1.0kV Solar Cable Tinned Copper Halogen Free Flame-retardant
1.5-35mm²
Application
AC solar cables are primarily used in photovoltaic (PV) systems for
transmitting alternating current (AC) power generated by solar
inverters. Their key applications include:
Grid Connection – Connecting solar inverters to the utility grid in
on-grid PV systems.
AC Distribution – Transmitting power from inverters to load
centers, switchboards, or household/industrial appliances.
AC-Coupled Storage – Linking hybrid inverters to battery storage
systems in AC-coupled solar setups.
Constrcution
Conductor
Class 5 tinned copper conductors
Insulation
Halogen free flame-retardant insulation material for solar cables
Outer sheath
Halogen free flame retardant sheath material for solar cables
Specification
PV1-F-AC 0.6/1.0kVCable Structure Parameters
Cross section(mm²) | Conductor Construction (no/mm) | Conductor Stranded OD.max(mm) | Cable OD.(mm) | Approximate weight of cable
kg/km | Max Conductor Resistance(Ω/km,20°C) |
1×1.5 | 48/0.20 | 1.58 | 4.6 | 33 | 13.7 |
1×2.5 | 77/0.20 | 2.02 | 5.0 | 45 | 8.21 |
1×4 | 56/0.285 | 2.46 | 5.4 | 61 | 5.09 |
1×6 | 84/0.285 | 3.01 | 6.0 | 83 | 3.39 |
1×10 | 77/0.40 | 4.1 | 7.3 | 130 | 1.95 |
1×16 | 7×17/0.40 | 5.5 | 8.9 | 196 | 1.24 |
1×25 | 7×27/0.40 | 6.7 | 10.3 | 290 | 0.795 |
1×35 | 7×38/0.40 | 8.2 | 11.8 | 390 | 0.565 |
FAQ
1. What is the difference between AC and DC solar cables?
AC Solar Cables carry alternating current (AC) from the inverter to
the grid or loads.
DC Solar Cables carry direct current (DC) from solar panels to the
inverter.
Key differences: Voltage type (AC vs. DC), insulation requirements,
and applicable standards.
2. What voltage rating do AC solar cables have?
Standard systems: 230V (1-phase) or 400V (3-phase) for
residential/commercial use.
Utility-scale systems: Up to 35kV for medium-voltage distribution.
3. Are AC solar cables UV-resistant?
Yes, high-quality AC solar cables have UV-resistant insulation
(XLPE or LSZH) for outdoor use.
