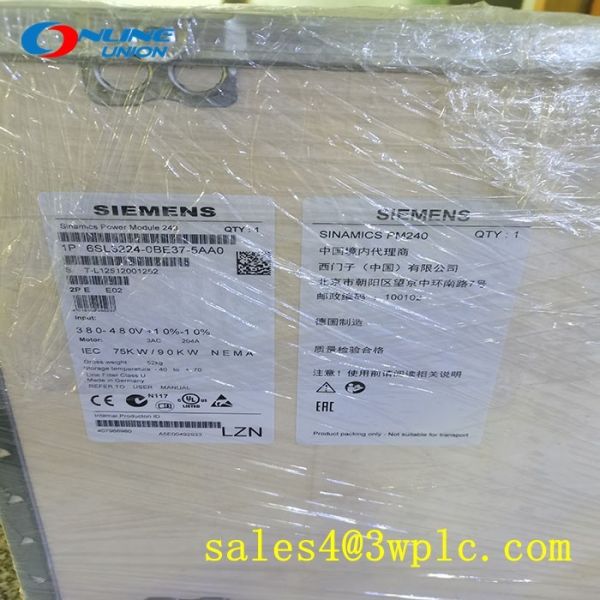

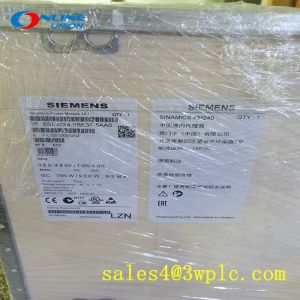

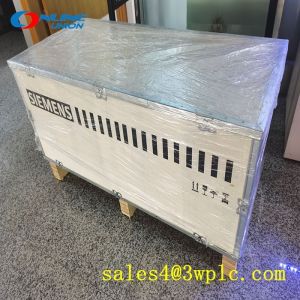

    6SL3224-0BE37-5AA0 SIEMENS G120 PM240 Power Module

    Ask Lasest Price
    Brand Name : SIEMENS
    Model Number : 6SL3224-0BE37-5AA0
    Price : 1-99$
    Payment Terms : T/T
    Delivery Time : in stock / 1-3 work days
    Supply Ability : 999
    • Product Details
    • Company Profile

    6SL3224-0BE37-5AA0 SIEMENS G120 PM240 Power Module

    SIEMENS 6SL3224-0BE37-5AA0 G120 PM240 Power Module:


    SINAMICS G120 PM240 Power Module with integrated filter class A with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 75 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C power low overload: 90 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 °C 934 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP.



    Technical Specifications :

    ParameterDetails
    Model Number6SL3224-0BE37-5AA0
    SeriesSINAMICS G120 (PM240-2 Power Module)
    Rated Power75 kW (Heavy Overload), 55 kW (Light Overload)
    Output Current145A (Rated at Heavy Overload), 110A (Rated at Light Overload)
    Input Voltage3AC 380-480V +10/-10%, 47-63Hz
    Control ModeCurrent Vector Control (Energy-Optimized Utilization)
    FilterIntegrated A-Class Filter (Reduces Electromagnetic Interference)
    Brake FunctionIntegrated Brake Chopper (Supports Dynamic Braking)
    Mechanical DesignCompact Book-Size Format (634 × 350 × 316 mm), IP20 Protection
    WeightApproximately 15 kg (FSF Variant)
    CoolingPassive (Fan-Free Design) with Ventilation Requirements: 100 mm Top/Bottom, 30 mm Sides
    MountingDIN Rail or Direct Cabinet Mounting
    Operating Temperature0°C to +50°C (Heavy Overload), 0°C to +40°C (Light Overload)
    Storage Temperature-25°C to +70°C
    Humidity5% to 95% (Non-Condensing)
    AltitudeUp to 1000m (Derating Required Above 1000m)
    Vibration/ShockConforms to IEC 60068-2-6/27 (Industrial Environment Resistance)
    ApprovalsCE, UL, RoHS-Compliant
    ComplianceEN 61800-3 (EMC), IEC 61508/SIL2 (Safety)
    CommunicationPROFINET, PROFIBUS DP (Optional via IsoPROFIBUS Board)
    DiagnosticsLED Status Indicators, Error Logging, and Debugging via TIA Portal
    I/O InterfaceConfigurable Digital/Analog I/O (via Optional Modules)
    Safety FunctionsSTO (Safe Torque Off) per IEC 61508/SIL2
    Optional ModulesFieldbus Adapters, Encoder Interfaces, Safety Modules
    Lifecycle StatusPM400 (Product Announcement
