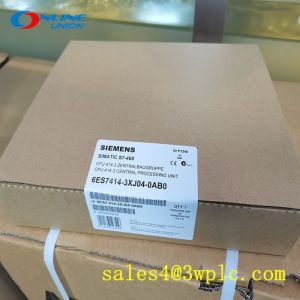

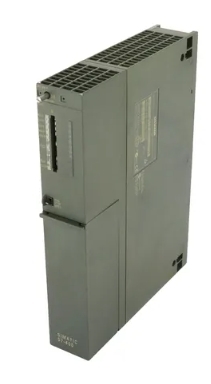

SIEMENS 6ES7414-3XJ04-0AB0 CPU 414-3 Central Processing Unit:
SIMATIC S7-400, CPU 414-3 Central processing unit with: work memory
1.4 MB, (700 KB code, 700 KB data), 1st interface MPI/DP 12 Mbit/s,
2nd interface PROFIBUS DP, 3rd interface plug-in IFM module.
Technical Specifications:
Type: S7-400 CPU (CPU 414-3)
Performance:
Cycle time: 150 ns per 1k instructions
Boolean operations: 1.0 ns per instruction
Floating-point operations: 10 ns per instruction
Memory:
User memory: 512 KB (expandable to 2 GB via MMC)
Data retention: 200 hours (via built-in battery)
Communication:
PROFINET IO: 2 ports (100 Mbps, RJ45/M12 connectors)
PROFIBUS DP: 1 port (12 Mbps, D-sub 9-pin)
Modbus TCP: 1 port (via software license)
Safety protocol: PROFIsafe (SIL 3/PLe)
I/O Capacity:
Maximum modules: 21 (central rack) + 8 (expansion racks)
Digital I/O: 16 channels (8 inputs/8 outputs, 24V DC)
Analog I/O: 4 channels (0–10V/4–20mA)
Motion Control:
Axis support: 16 axes (via S7-400H technology)
Positioning resolution: 0.1 μm
Sync control: Electronic camming, gearing, and phase shifting
Redundancy Features:
Hot-swap capable: ≤200ms failover time (with redundant partner CPU)
Data synchronization: 1ms (100% parity)
Diagnostic LEDs: Redundancy status, CPU health, I/O errors
Power Consumption:
24V DC: 3.5A (typical), 4.8A (peak)
5V DC: 3.0A (from backplane bus)
