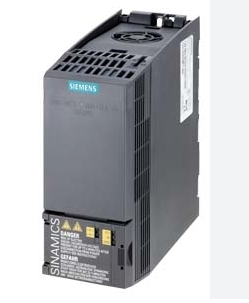

SIEMENS 6SL3210-1KE14-3AF2 SINAMICS G120P Variable Frequency Drive
(VFD):
SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz low
overload: 1,5kW at 150% 3s, 110% 57s, 100% 240s high overload:
1,1kW at 200% 3s, 150% 57s, 100% 240s integrated filter class A
external 24V I/O interface: 6DI, 2DO,1AI,1AO, 1Mot_t Safe Torque
Off integrated Fieldbus: PROFINET-PN Protection: IP20/ UL OPEN TYPE
Size: FSAA 173X73X160(HXWXD).
Product Overview:
The 6SL3210-1KE14-3AF2 is a SINAMICS G120P inverter drive from
Siemens, designed specifically for HVAC (Heating, Ventilation, and
Air Conditioning) applications. With a power rating of 5.5 kW (7.5
HP) and a voltage range of 3AC 380–480 V ±10%, this VFD is
optimized for fans, pumps, and compressors in building automation
systems. Its key features include integrated bypass functionality,
energy-saving modes, and HVAC-specific control algorithms, making
it a reliable and efficient solution for climate control and
industrial processes.
Technical Specifications:
| Parameter | Details |
|---|
| Model | 6SL3210-1KE14-3AF2 |
| Power Rating | 5.5 kW (7.5 HP) |
| Input Voltage | 3AC 380–480 V ±10%, 50/60 Hz |
| Output Current | 12 A (rated), 18 A (peak) |
| Overload Capacity | 150% for 60 s, 200% for 3 s |
| Control Modes | V/f, SLVC (FVC optional) |
| Communication Options | USS, Modbus RTU (PROFIBUS/PROFINET optional) |
| Bypass Function | Integrated (contactor-less) |
| Fire Mode Compliance | EN 12101-3 |
| Protection Class | IP20 (enclosure) |
| Operating Temperature | -10°C to +50°C (14°F to +122°F) |
| Dimensions (W × H × D) | 190 × 290 × 200 mm (7.48 × 11.42 × 7.87 in) |
| Weight | ~9.0 kg (19.8 lbs) |
| Approvals | CE, UL, cULus, RoHS |
