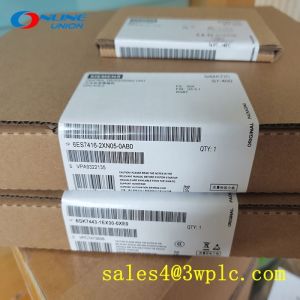

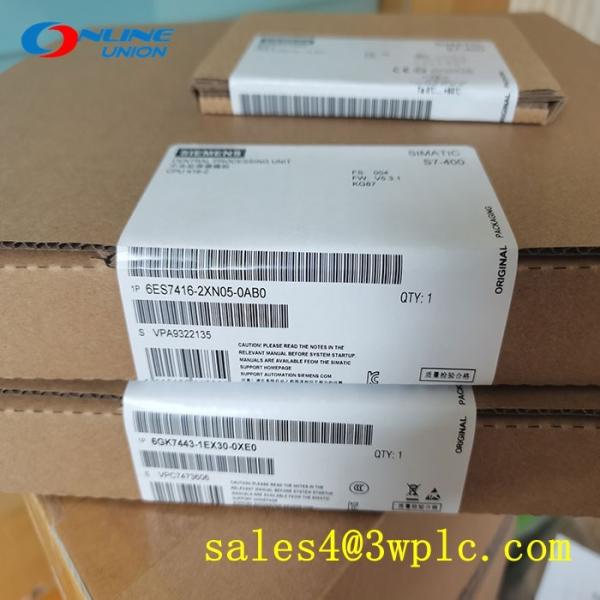

SIEMENS 6ES7416-2XN05-0AB0 CPU 416-2 Central Processing Unit :
SIMATIC S7-400, CPU 416-2 Central processing unit with: work memory
5.6 MB, (2.8 MB code, 2.8 MB data), 1st interface MPI/DP 12 Mbit/s,
2nd interface PROFIBUS DP
Product Description
The Siemens 6ES7416-2XN05-0AB0 is a high-performance CPU module
designed for the SIMATIC S7-400H series, which is part of Siemens'
SIMATIC S7-400 automation system. This CPU is specifically
engineered for fault-tolerant and redundant automation
applications, ensuring maximum system availability and reliability
in critical industrial processes.
Technical Specifications:
| Parameter | Specification |
|---|
| Model | 6ES7416-2XN05-0AB0 |
| Series | SIMATIC S7-400H |
| Function | Fault-Tolerant CPU 416H-3 PN/DP |
| Processor Speed | ~1.2 GHz (equivalent performance) |
| Memory (RAM) | 4 MB (expandable up to 16 MB with optional memory modules) |
| Load Memory (Flash) | 2 MB (for storing user programs and data) |
| Bit Execution Time | ~0.03 μs per binary instruction |
| Word Execution Time | ~0.1 μs per word instruction |
| Redundancy Support | Hot Standby (1+1 redundancy) |
| Communication Interfaces | - PROFINET IO (2 ports, RJ45)
- PROFIBUS DP (1 port, 9-pin D-sub) |
| Max. I/O Modules | Up to 21,216 digital I/O points or 2,688 analog channels (when
expanded) |
| Power Supply | 24 V DC (supplied via S7-400H backplane bus) |
| Power Consumption | Typically < 50 W (varies based on configuration) |
| Mechanical Dimensions | ~40 mm (W) x 290 mm (H) x 210 mm (D) |
| Weight | ~2.5 kg |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 (for installation in control cabinets) |
| Approvals/Certifications | CE, UL, cUL, GOST-R, IEC 61131-2, EN 60947-5-1 |
