Stainless steel 304 of Pipe sand control wire wrapped Screen
filters for deep water well drilling:

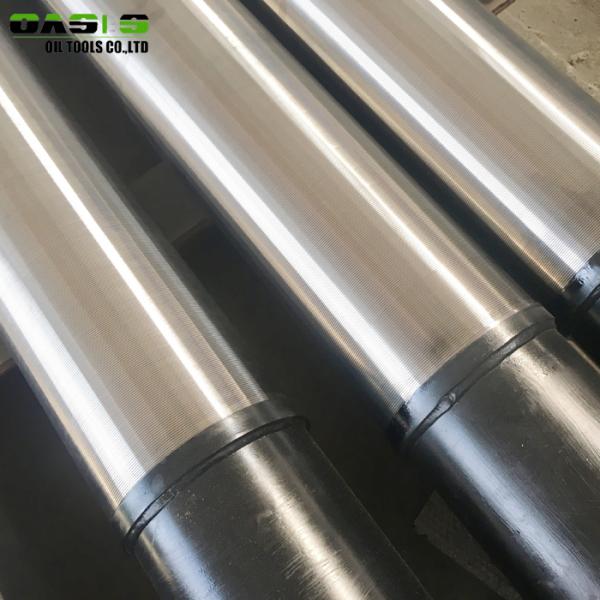

Slip on wedge wire screen consists of a perforated LCS base pipe
and an outer stainless steel jacket slipped on it. Outer jacket is
made of V-shaped profile wire, which is spirally wrapped around
support rods welded in each intersecting point.
Wedge wire screen offers continuous slot openings providing high
open area, as well as accurate slot dimension.
Materials: stainless steel wire AISI 304, 316L,
Benefits:
Certified slot accuracy along entire screen length;
Superior open area due to their continuous slot openings;
Keystone slot design for the maximum flow, better self-cleaning and
minimum plugging;
Wide range of standard configurations;
Withstands high-pressure and high-temperature conditions;
A uniform and efficient well development due to long-term sand
control;
Significantly reduce potential damage of surface equipment and
subsequent maintenance costs
The V-shape section plane can avoid blockage, and make sure of the
unimpeded water, the consecutive slot have more open area and it
can reduce the speed of the water entering to avoid the sand
entering the screen under the great pressure, so it can filter sand
better.Meanwhile, the slot can change according to the real
condition of the earth.
For both the base pipe and screen jacket, the specification can be
customrized according to requirment.
Pipe based sand control screen:
Specfications:
Slot size: 0.05,0.1,0.15,0.2,0.25,0.3,0.5 to 20mm also achieved
upon request.
Material: Low-carbon steel,medium carbon steel,stainless steel
(304,304L,316,316L,duplex stainless steel,2205,2207)
Length: 30mm to 6000mm
Outer Diameter: 73mm to 600mm
Wedge Wire
Specifications:0.75X1.5mm,1X2mm,1.5X2.5mm,2X3mm,2.3X4mm,3X5mm,3.5X6.5mm
End connection: Plain beveled ends, flanged or threaded couplings
Application:
Heavy oil, sand oil, SAGD, CBM, bitumen.
Water injection.
Horizontal, vertical, deviated oil and gas, water wells.
Stand-alone operations, cased hole, open hole environments and
horizontal completions.
Packing:
Standard international package for the stainless steel well screens
plate for oil filter
1. Wood package to keep the goods without the wet from the sea and
the collision in the container
2. Plastics package:
Cheaper than the wood package and save more space for the goods
load.
3. Woods pieces package:
Stronger than the plastic package, and cheaper than the wood
package,
The best choose for the filters.
COMPANY:
Oasis oil tools co.,ltd has been awarded many honors and
certifications such as patents of utility model authorized
certificate, quality management system certificate, export licence
and pre-export licenses. We can design all types of letters of
credit according to your requirement. Oasis oil tools co.,ltd has
developed into a famous and leading manufacturer which integrate
the research and development, design, manufacture and sell. Welcome
to visit our company.
All the products can be designed as per your real condition.
And third party inspection (BV, SGS, etc) of our products are
acceptable.
If there is any questions or requirements of our PIPE BASE SCREEN
products, feel free to contact with we OASIS.
We also would like to share with you some related information and
experience.
