GRUNDFOS MAGNA3 40-180 F

The latest high-end circulation pump solution, with a large number of electronic control operation characteristics, has so far exceeded the requirements of the EuP instruction.

The Grundfos MAGNA3 is an electronically controlled high-efficiency circulation pump used in commercial buildings. Rated flow rate: 16.04 m ³/h Rated head: 9.2 m Liquid temperature range: - 10 .. 110 °C Liquid temperature during operation: 60 °C Maximum operating pressure: 10 bar Application scenarios:The Grundfos MAGNA3 is suitable for commercial heating.

The Grundfos MAGNA3 circulator pump is the ideal choice for almost any building project - old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to Grundfos Go app on your smart phone without any need for a dongle. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 is the superior choice for a wide range of heating and cooling applications, including:

MAGNA3 is a single-phase pump and characterised by having the controller and control display integrated in the control box. The pump also has a built-in differential-pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.
technology

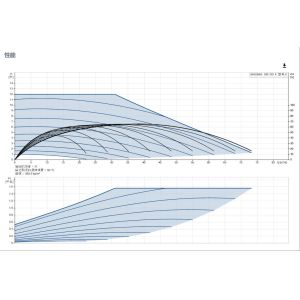

Rated flow rate: 16.04 m³/h
Rated head: 9.2 meters
Maximum head: 180 decimeters
TF level: one hundred and ten
Approvals: CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO
Chamber model: E
Material Science
Pump casing: cast iron
Pump housing: EN 1561 EN-GJL-250
Pump casing: ASTM A48-250B
impeller: Composite
install
Environmental temperature range: 0 ~ 40 °C
Maximum operating pressure: 10 bar
Interface model: DIN
Size of connection: DN 40
Pressure rating for pipe connection: PN 6/10

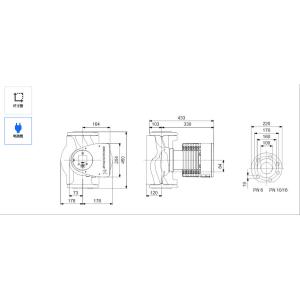

Port-to-port length: 250 millimeters
liquid
Transported liquids: water
Liquid temperature range: -10 .. 110 °C
Liquid temperature during operation: 60 °C
density: 983.2 kg/m³

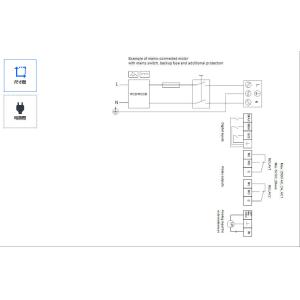

Electrical data
Maximum input power - P1: 609 W
P1 min.: 16 W
Power frequency: 50 / 60 Hz
Rated voltage: 1 x 230 V
Minimum current consumption: 0.18 A
Maximum current consumption: 2.78 amps
Maximum speed: 4920 revolutions per minute
Encapsulation level (IEC 34-5): X4D
Insulation class (IEC 85): F
other
Energy (EEI): zero point one seven
Net weight: 16 kg
Gross weight: 17.5 kg
Transport volume: 0.039 m³
