| Brand Name : | Newbase |
| Model Number : | CK201370212, CK201370212 |
| Price : | USD 50~100/unit |
| Delivery Time : | 30 days |
| Payment Terms : | T/T |
| Supply Ability : | 3000EU/M |

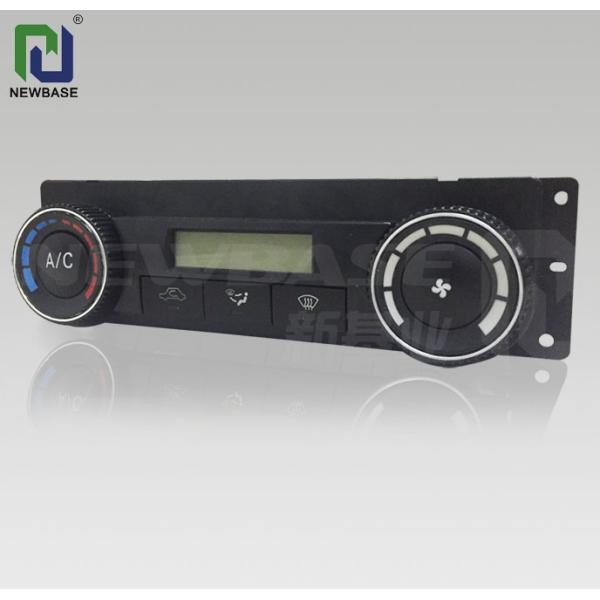

PEUGEOT 206 Hatchback 2A/C CK201370212 HVAC Climate Control Module Heater A/C AC Air Conditioning Control Switch Panel Two Knob Climate Control Systems
Cooling | YES |
Heating | YES |
Ventilation | YES |
Fresh Air | YES |
Auto control | NO |
Air flow regulation | YES |
Air blowing setting | YES |
Technical Data | ||
Power supply | DC12V | |
Dimension | 225X62X61mm | |
Input | 1) Air inlet temp. sensor 2) Defrosting sensor 3) Pressure switch 4) ACC power 5) Backlight power supply 6) A/C power | |
Output | 1) Cooling 2) Fresh air 3) Precharge 4) Evaporator fan PWM 5) Condenser fan 6) Heating 7) Mode actuator control | |
Ambient temperature | -40℃—85℃ 5%-95%RH Non-condensing | |
Storage temperature | -40℃—90℃ 5%-95%RH Non-condensing | |
Display precision | Temp value. Dual digit display, Accuracy,1 °c | |
Protection | IP43 | |
EMC | EN50081&EN50082-2 | |
Security level | Applied to EN61010-II, Pollution degree: II | |







|
