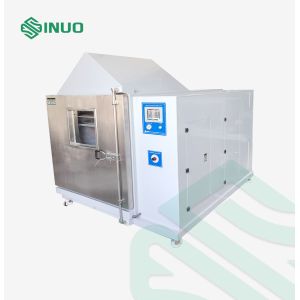

    ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN8810C-1m³
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber


    ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber


    Complied Standards & Clauses



    It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.

    Equipment Overview



    The equipment has an emergency braking function, and a brake switch is installed on the equipment. When an abnormal situation occurs, the equipment can be powered off through the control switch.

    The equipment is equipped with corresponding system software, which can run stably on the provided operating system, and the software interface is in Chinese or English, the software includes temperature change test, humidity, precision calibration, and equipment self-test module.

    The system software can record in real time, save automatically, and optimize data, and can draw temperature-time, humidity-time curves through software settings.

    The system software is set with a safety protection parameter interface, and after the setting is completed, it will be given priority during the test process, thereby ensuring the safety of the test.


    Technical Parameters


    Product Name

    Compound Salt Spray Test Chamber
    Product modelSN8810C-1m³
    Nominal internal volume

    1m³
    Note: Does not include the volume of the top sloping roof

    Effective size of inner box (mm)

    1000×1000×1000 W×D×H
    Note: The height of the top slope is 600mm

    External space (mm)About 1600×2400×2000 W×D×H
    WeightAbout 500kg
    Bearing capacityAbout 80KG

    Control accuracy

    Temperature resolution: 0.1°C

    Humidity resolution: 0.1%R.H

    Temperature deviation: ±2.0℃

    Humidity deviation: ≤+2-3%R.H when ≥75%RH,

    humidity deviation: ≤±5%R.H when <75%RH

    Temperature fluctuation: ±1℃

    Humidity fluctuation: ±3%R.H

    Note: The temperature uniformity and deviation are measured under the conditions of ambient temperature +25°C, relative humidity ≤85% RH, and no sample.

    Heating rate of the test roomRT→+60℃≤45 min
    Heating rate of saturated tankRT→+65℃≤45 min
    Specimen restrictions

    This test chamber prohibits:

    Testing or storage of samples of flammable, explosive and volatile substances

    Testing or storage of samples of corrosive substances

    Testing or storage of biological samples

    Testing or storage of samples of strong electromagnetic emission sources

    Testing and storage of radioactive material samples

    Testing and storage of samples of highly toxic substances

    Testing and storage of samples that may produce highly toxic substances during testing or storage
