    1s Data Refresh Frequency Laser Dust Sensor KGD PM 112 for Accurate PM1.0 Output

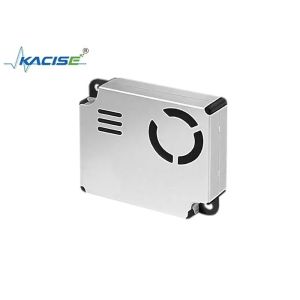

    Laser Dust Sensor KGD - PM - 112


    Product Introduction

    The KGD - PM - 112 laser dust sensor is based on the principle of optical scattering. It adopts a full-metal shield and an ultra-thin (12mm) design. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume, and through mathematical algorithms and scientific calibration, it can output the mass concentrations of PM1.0, PM2.5, and PM10 particulate matters in real time.

    Product Features

    • The minimum resolvable particle size is 0.3μm.
    • Outputs PM1.0, PM2.5, and PM10 in real time.
    • Constant current sampling structure.
    • High accuracy, high sensitivity, and fast response.
    • Full-metal shielding, with good anti-interference ability.
    • Ultra-thin design, with a height of only 12mm.

    Technical Parameters

    Detection Range0 - 1000μg/m³
    Data OutputPM1.0, PM2.5, PM10
    PM1.0 & PM2.5 Detection Accuracy≤ 100μg/m³: ± 10μg/m³ >100μg/m³: ± 10% of the reading
    PM10 Detection Accuracy≤ 100μg/m³: ± 20μg/m³ >100μg/m³: ± 20% of the reading (Tested under typical working conditions, that is, 25±2℃, 50±10%RH, with Gold Sample* as the reference)
    Data Refresh Frequency1s
    Power-on Stabilization Time≤8s
    Operating Conditions-10℃ to 50℃, 0 - 95%RH (non-condensing)
    Storage Conditions-20℃ to 60℃, 0 - 95%RH (non-condensing)
    Operating VoltageDC 5V±0.1V, with a ripple < 50mV
    Operating Current≤100mA
    Standby Current≤200μA
    Communication InterfaceUART: +3.3V level IIC: +3.3V level
    Product DimensionsW48H40D12 mm
