    High Precision Skateboard Five Axis Engraving Machine High Speed

    Ask Lasest Price
    Brand Name : SUBA
    Model Number : 1224-Dual workstation
    Certification : CE
    Payment Terms : T/T
    • Product Details
    • Company Profile

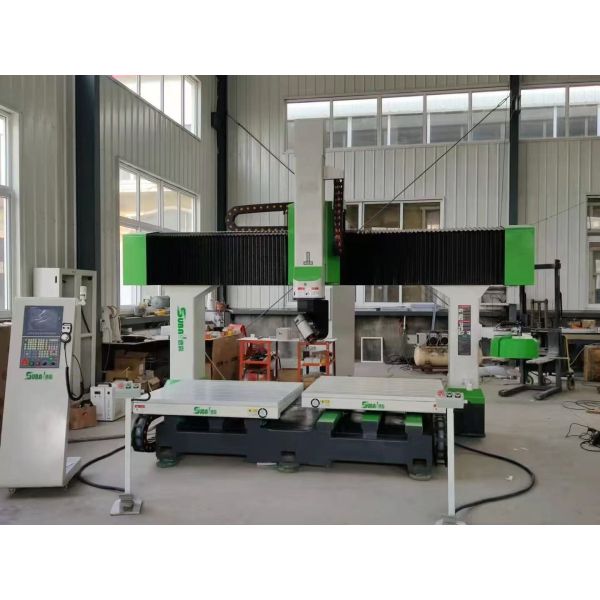

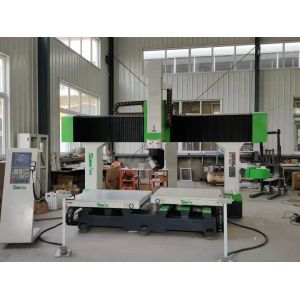

    High Precision Skateboard Five Axis Engraving Machine High Speed

    Skateboard Five Axis Engraving Machine


    With the rapid development of the manufacturing industry, the requirements for CNC equipment are also increasing. High speed, high precision, high efficiency, safety and environmental protection, multi-axis linkage, and compound collaborative processing have become the mainstream in the development of machining centers today. High-precision five-axis machining centers are mainly used for the processing of thick sheet thermoforming parts. They are applied in the automotive industry, plastic and rubber mold manufacturing industries, as well as various industries such as the production of instrument and refrigerator casings.

    Processing functions: This machine is a five-axis machining center equipment that integrates trimming, cutting, and milling holes for thick sheet thermoformed parts.

    Processing material: Suitable for cutting and trimming processing of thick ABS material vacuum forming parts and plastic parts

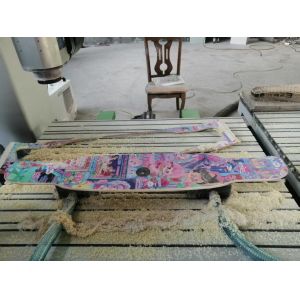

    Widely used in: wood skateboard, furniture and craft carving

    NameDual-Station Five-Axis Machining Center
    Effective workbench size2400*1200*800mm (Width X * Length Y * Height Z) Dual tables can be processed simultaneously up to 2.4 meters.
    Workbench dimensions1200mm*1200mm+1200mm*1200mm)
    A-axis rotation angle±120°
    C-axis rotation angle±320°
    WorkbenchT-slot aluminum profile worktop
    Method of workpiece movementCounter movement
    Spindle motorItalian Hiteco 9kw Air-cooled Tool Changer Spindle

    Tool magazine

    8-station tool magazine (rotary type)
    Maximum spindle speed18000rap/min
    Transmission systemX.Y.Z axes are Taiwan TBI ball screw drives.
    GearboxJapanese Shinpo Gear Reducers
    Drive motorTaiwan Han Yu Servo Drive Motor
    DriverTaiwan Han Yu Servo Drive
    RailTaiwan CSK Precision Linear Guide, (Y-axis 30, X-axis 30, Z-axis 25)
    Control systemRenak five-axis system with RTCP functionality
    Machine tool cableGerman IGUS brand, strong tensile strength, ultra-high corrosion resistance, good shielding effect.
    Low-power electrical devicesGerman Siemens original import
    Softwareprogramming languages such asJD paint/WT/UG/TYPE3/MASTERCAM and other internationally recognized G codes
    Maximum feed rate

    XY axis 30m/min, Z axis 20m/min

    Maximum shift speed

    X/Y axis 40m/min, Z axis 30m/min

    Processing accuracy±0.05mm/m
    Repeatability of positioning±0.05mm
    Tool specificationsФ3.175mm---Ф20mm
    Tool specificationsAutomatic Lubrication System
    Tool specificationsIndependent distribution cabinet (dustproof and antistatic)
    Vacuum systemWith vacuum cleaner
    Structural reinforcementTempering treatment, internal stiffeners of the X-axis beam
    Working voltageProduce according to the voltage of the customer's country.
