    2.8 inch TFT LCD Screen | 480x640 RGB Interface | ST7701S Controller

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H028A19VGIST5N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    2.8 inch TFT LCD Screen | 480x640 RGB Interface | ST7701S Controller

    2.8-Inch TFT LCD Screen: A High-Performance Display Solution

    2.8 inch TFT LCD Screen | 480x640 RGB Interface TFT Panel | ST7701S

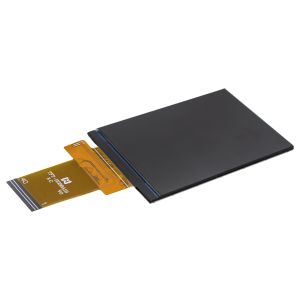

    TFT-H028A19VG1ST5N40 is a 2.8 inch TFT LCD Screen with RGB+SPI dual interface design, 480x640 resolution pixels. Its core driver chip is ST7701S, with an operating voltage range of 3.0V~3.6V .It is equipped with a non-touch screen version, and the backlight adopts constant current drive , with a typical brightness of 500 cd/m², which meets the needs of various indoor and outdoor scenes.In terms of interface, this 2.8 inch TFT LCD Screen provides 40-pin RGB parallel bus and SPI serial communication options, This module is suitable for industrial control, medical equipment, portable terminals and other fields, taking into account high performance and reliability.


    This 2.8 inch TFT LCD Screen product can be used in handheld devices, household appliances and other products, with moderate size and wide application range. This product has an RGB interface and the same size. Users can also choose the MIPI interface model. The same series of products TFT-H028B23VGIST5G30 also has models with resistive touch function TFT-H028A17QVTST2R37, and TFT-H028C2QVTST4C45 with capacitive touch function, 2.8-inch round display TFT-H028A21ZHIST3N40.


    ITEMPARAMETER DESCRIPTIONUNIT
    TFT seriesTFT-H028A19 VGIST5N40
    Diagonal size2.8Inch
    Resolution480x640Dot
    Dimensions46.1x65.15x1.51mm
    Active area (AA)43.2x57.90mm
    LCD type2.4 inch TFT LCD displaymm
    Display viewing angleFull View
    Aspect ratio2:3
    Backlight typeLED white
    TFT driver ICST7701S
    Brightness500cd/m2
    Operating temperature-20~70℃
    Storage temperature-30~80℃
