AKK VTX 5.8G 1.6W Long Range Transmitter 5.8Ghz 1000mW 2000mW 3000mW FPV VTX 40CH
Description:
Remote Transmission:
This AKK 5.8G VTX offers a reliable and stable transmission signal of up to 1000mW, ensuring seamless and uninterrupted video feed for remote control enthusiasts.
High power output: With a power output of 3W, this VTX provides a strong and clear signal, making it ideal for use in a variety of applications, including racing and freestyle flying.
Compact and durable design: Made of high-quality plastic, this VTX is designed to be compact and lightweight while also being durable and resistant to wear and tear.
Wide compatibility: Suitable for use with rc transmitters and receivers, this VTX is a versatile product that can be used with a wide range of remote-controlled toys and vehicles.
User-friendly operation: Designed for ease of use, this VTX has a simple and intuitive design that makes it easy for users to set up and operate, even those with limited technical expertise.
Parameter:
Modulation type: FM
Frequency control: PLL
Audio sub-carrier control PLL
Frequency Stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
A/V (Ratio): -26±2dB
S/N(Fo±3MHz): >70dBc
Channel Carrier error :1dB
Antenna Port: 50 Ohms
Input format: NTSC or PAL
Video input level: 1V±0.2Vp-p type
Audio input level: 1V±0.2Vp-p type
Operating Temperature :-10℃~+60℃
Input power supply: DC 7-28V
Output voltage: DC7.28V ; DC5V

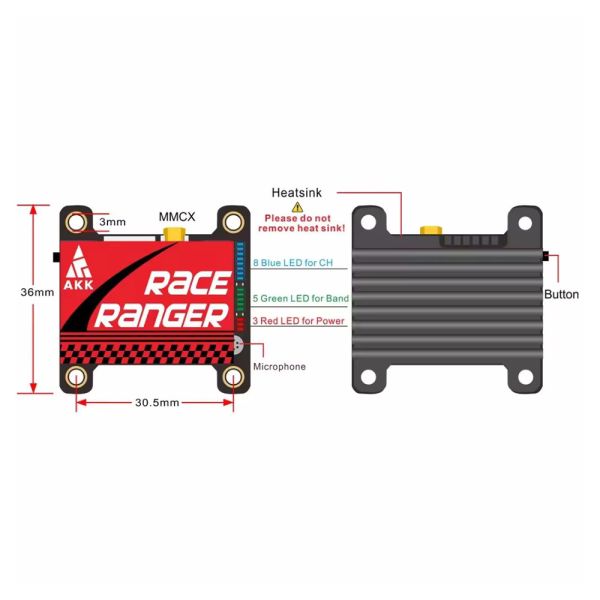

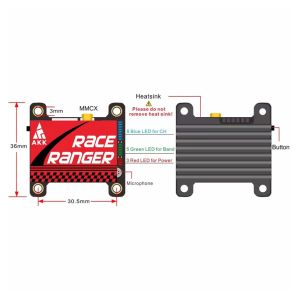

Profile dimension :45.5mm(L)*35.8mm(W)*8.4mm(H)
Installation hole position: 30.5mm x 30.5mm
Net weight: 10g
