2.4GHz 868/900MHz 915MHz ELRS Dual Band Gemini Receiver Semtech LR1121 ELRS Transceiver
Description:
The 900/2400 Dual Band Gemini RX dual-band receiver is a wireless control system optimized and developed based on the ExpressLRS open-source project. It uses the Semtech third-generation LR1121 transceiver and can be configured for sub-GHz frequencies ranging from 150-960MHz or 2.4GHz LoRa. The sub-GHz range is fully compatible with the current ELRS433/868/900 range and features +100mW output capability, with the SX1276 supporting a maximum output power of +50mW. It is also fully compatible with all 2.4GHz LoRa modes.
However, it doesn’t support FLRC mode or 2.4GHz D and F modes currently.
Dual-band four-channel transmission at the same time, and at the interval of 10-40MHz at the same time uninterrupted frequency hopping, anti-interference ability is stronger.
Introduction to Gemini on the ELRS Official website: https://www.expresslrs.org/software/gemini/#how-doesa.gemini-rx-behave-when-paired-with-a-non-gemini-tx
Support 5 Reception Modes:
1) 900MHz diversity mode (dual antenna true-diversity)
2) 900MHz Gemini mode (dual antenna Gemini) u
3) 2.4G diversity mode (dual antenna true-diversity)
4) 2.4G Gemini mode (dual antenna Gemini)
5) 900MHz & 2.4G dual band Gemini mode

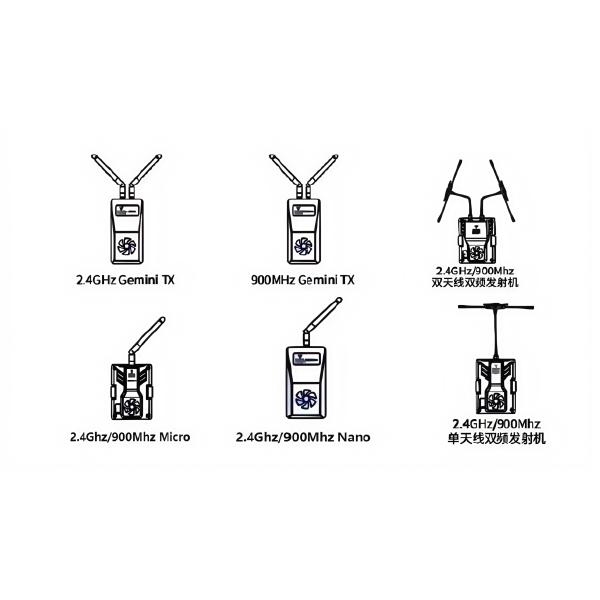

Dual-band Gemini RX's Compatibility
2.4G Gemini TX900MHz Gemini TX
900M/2.4G Dual-antenna Dual-band Transmitter
900M/2.4G Micro
900M/2.4G Nano
900M/2.4G Single-antenna Dual-band Transmitter
Gemini Receiver Installation:
Custom Antenna Combination Options:
Product Real Pics:
Drone Electrical System:
FPV Electronic System Products:
1. Stack (FC+ESC)
2. Radio Transmission (RX)
3. Remote Micro Transmitter Module (TX)
4. Video Transmitter (VTX)
5. Video Receiver (VRX)
6. Accessories
1. Control System - Stack (FC+ESC)
Flight Controller (FC) Electronic Speed Controller (ESC)
(1) Processor: STM32 F405 (1) Firmware: AM32
(2) Gyro: ICM42688P (2) ESC Protocol: DSHOT300/600
(3) OSD Chip: AT7456E (3) Currency Optional: 50A / 60A / 65A
(4) Firmware: BetaFlight / INA (Multishot, OneShot125)
2. Radio Transmission System - TX & RX
Receiver (RX) Micro Transmitter Module (TX Module)
(1) MCU: SX127X/SX128X + ESP8285 (1) Firmware: AM32
(2) Telemetry Power: 100mW (2) ESC Protocol: DSHOT300/600
(3) Frequency Hopping: 20-40MHz (3) Currency Options: 50A / 60A / 65A
(4) Frequency Options: (4) Frequency Options:
360--520 MHz / 530--560 MHz/ 360--520 MHz / 530--560 MHz / 720--1020
720--1020 MHz / 433MHz, 915MHz, 2.4GHz 720--1020 MHz
Real photo:
