CRN 255-6-2 A-F-A-E-HQQE
Serial Number 99144767
Suitable for
Commercial heating
Commercial air conditioning
Commercial water pressure boosting
District heating
District cooling
Machining
Industrial cleaning processes
Process water distribution
Heating
Refrigeration
Industrial water supply and transportation
Industrial wastewater
Process water treatment
Desalination
Surface water intake
Drinking water treatment
Municipal water distribution
Irrigation
Solar water solutions
Water supply for residential areas and buildings
Vertical multi-stage centrifugal pump, with the suction port and
the discharge port located on the same horizontal plane. The pump
materials in contact with the liquid are high-grade stainless steel
(EN 1.4401).
CRN Stainless Steel Vertical Multi-stage Centrifugal Pump: Strong
Corrosion Resistance
CRN Stainless Steel Vertical Multi-stage Centrifugal Pump: Strong
Corrosion Resistance The CRN stainless steel vertical multi-stage centrifugal pump is a
pipeline-type multi-stage pump, allowing for the selection of
different flow rates and pressures according to requirements. Made
of high-grade AISI 316 stainless steel, it is highly suitable for
applications such as ultrafiltration, reverse osmosis, machine
tools (cooling lubricants), distillation systems, swimming pools,
handling of oils, alcohols, acids and alkalis, process water
systems, and dealing with various complex liquids in processing. Grundfos also offers a variety of CRN stainless steel vertical
multi-stage centrifugal water pumps approved by ATEX. These pumps
can be selected based on different locations, degrees of hazard,
and potential hazardous situations. The ATEX-approved pumps are
suitable for potentially explosive environments, which are
typically composed of air and flammable substances (such as gases,
vapors, mists, or dusts), and may trigger an explosion that spreads
after ignition. |
CRN 255-6-2 A-P-A-V-HQQV
Vertical multi-stage centrifugal pump. The inlet and outlet are on
the same horizontal plane (in-line). The pump body materials in
contact with the liquid are high - grade stainless steel. The built
- in thrust control device can absorb hydraulic axial forces, so
standard motors can be used. The Grundfos cartridge shaft seal
improves the reliability of the machine and the safety of
operation, making maintenance easier. Electric energy is
transmitted through a split - type coupling. The connection of
pipelines is realized via PJE couplings. An asynchronous motor with
a 3 - phase, cooling fan and feet is installed on the water pump. |  |
Liquid
Transmitted liquid: Water
Liquid temperature range: -20.. 90 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³
Technology
Pump speed on which the pump data is based: 2984 revolutions per
minute
Rated flow rate: 255 m³/h
Rated head: 220 meters
Pump orientation: Vertical
Shaft seal configuration: Single
Main shaft seal: HQQV
Shaft seal code: HQQV
Approvals: CE, UKCA, SEPRO
Approvals for drinking water: ACS
Curve tolerance: ISO9906:2012 3B
Materials
Base frame: Stainless steel
Base: EN 1.4408
ASTM A351 CF8M
Impeller: Stainless steel
EN 1.4401
AISI 316
Bearing: WC/WC
Support bearing: Graflon
Thrust handling device: SiC/WC
Material certified according to: European standards
Installation
Maximum ambient temperature: 55 °C
Maximum operating pressure: 40 bar
Maximum pressure at specified temperature: 25 bar / 90 °C
40 bar / 80 °C
Interface model: PJE
Inlet size: DN 200
Outlet size: DN 200
Pressure rating for pipe connection: PN 40
Flange size for motor: FF600

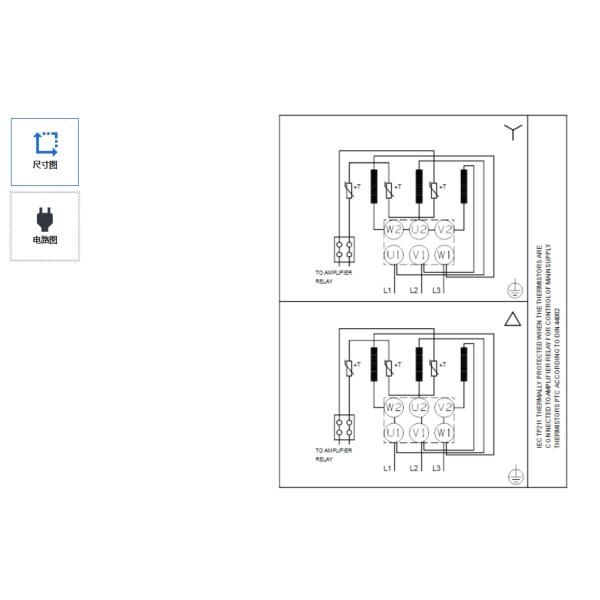

Electrical data
Motor standard: IEC
Motor model: INNOMOTICS
Rated power -- P2: 200 kW
Power required by the pump (P2): 200 kW
Power supply frequency: 50 Hz
Rated voltage: 3 x 380D/660Y V
Rated current: 345/199 A
Starting current: 790 %
Cos phi -- Power factor: 0.92
Rated speed: 2982 revolutions per minute
Efficiency: IE3 95.8%
IE efficiency class: IE3
Motor full - load efficiency: 95.8 %
Motor efficiency at 3/4 load: 96.1 %
Motor efficiency at 1/2 load: 95.6 %
Number of motor poles: 2
Degree of protection (IEC 34-5): IP55
Insulation class (IEC 85): F
Motor number: M1U05352
Controller
Frequency converter: None
Others
Terminal box position: 6
Minimum efficiency index, MEI ≥: 0.70
Net weight: 1,520 kg
Gross weight: 1,740 kg
Transport volume: 4.25 m³
Thrust handling device: Y
Place of origin: CN
Custom tariff no.: 84137099.90
