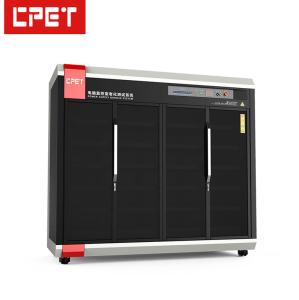

    300kW Burn In Test Cabinet Support Customization For Power Conversion System

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-PCS52
    Price : 8800dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    300kW Burn In Test Cabinet Support Customization For Power Conversion System

    Burn-In Test Cabinet Support Customization For Power Conversion System(PCS)

    Performance parameters
    SystemSystem structure1 control cabinet + 6 two-way source load cabinets
    Overall size5800*860*2050mm
    Total floor area5800*1800mm(Including operation area)
    Total input voltageThree-phase five-wire system 220Vac (rated)
    Total input current100A*6
    Total input power50kW*6
    Application ambient temperature0-40℃
    Application environment humidity0-95%
    Fire protection requirementsMaterials meet UL 94V0 rating
    Environmental requirementsMaterials comply with Rohs, WEEE requirements
    Safety requirementsComply with IEC62368 international standard design requirements
    Burn-in cabinetUnits/Cabinet2 bits/cabinet
    Burn-in product DC power150kW/bit
    Burn-in product DC voltage150-800Vdc
    Burn-in product DC current500A/bit
    Burn-in product AC power150kW/bit
    Burn-in products AC voltage220/380Vac/50Hz Three-phase five-wire
    Burn-in product AC current300A/bit
    AC Connector TypePA350 (L1/ L2/ L3/N/PE)
    DC Connector TypeDC bronze medal
    Signal Connector TypeRJ45 (network port)
    Input power300kW
    Feedback power280kW
    Volume size800*800*2050mm
    Product area air duct directionForward wind, upward wind
    Cooling methodAir cooling
    Material1.5mm cold rolled sheet
    Monitoring
    software
    Display accuracy±(1%+0.2%FS)
    Control precision±(1%+0.2%FS)
    Bad way of reportingAudible alarm
    Report formatCSV format
