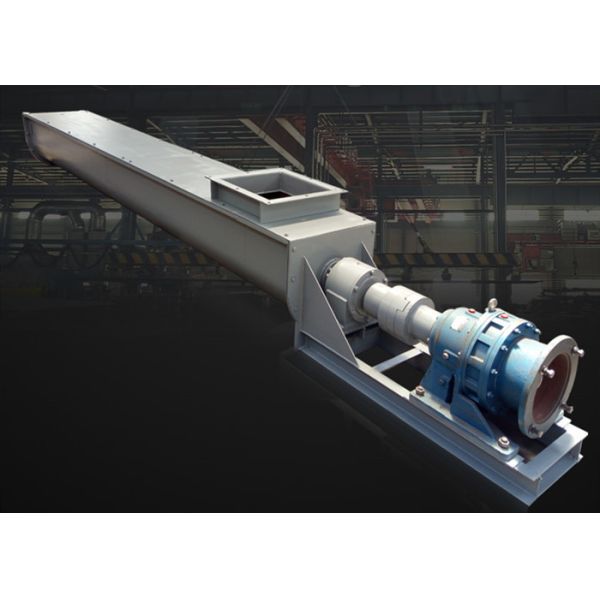

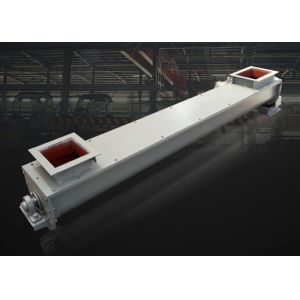

Cement Delivering 45 Degree 160MM U Trough Screw Conveyor

Information of U Trough Screw Conveyor

U Trough Screw Conveyor is a kind of machinery that uses motor to drive screw rotation and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically.

Characteristics of U Trough Screw Conveyor
The advantages of the screw conveyor are: simple structure, convenient maintenance, small size of the cross section, can enter and leave materials at any position in the length direction, and can use the cover of the tight closed housing to achieve a better sealing effect.

Technical parameter of U Trough Screw Conveyor

Model number			LSY140	LSY160	LSY200	LSY250	LSY300	LSY400
Screw diameter(mm)			140	163	187	238	290	365
Rotating speed(r/min)			300	300	260	200	175/300	175
Outer diameter(mm)			168	194	219	273	325	402
Max length(m)			11	12	13	16	18	18
Incline degree(α°)			0°~60°	0°~60°	0°~60°	0°~60°	0°~55°	0°~55°
Conveying capacity(t/h)			9-17	30-20	50-32	70-53	82-60/120-85	140-110
Motor	Model	L≤-7	Y132S-4	Y132S-4	Y132M-4	Y160L-6	Y180M-4	Y180M-4
	Power(kw)	L≤-7	5.5	5.5	7.5	11	18.5	18.5
	Model	L>7	Y132S-4	Y132M-4	Y160M-4	Y180L-6	Y180L-4	Y180L-4
	Power(kw)	L>7	5.5	7.5	11	15	22	22

How To Get The Price Of U Trough Screw Conveyor

1.Are you a factory or a trading company
We are a factory,and you are warmly welcomed to pay an on-site visit!

2.What's the accepted payment term?

T/T L/C Western union,cash and so on.

3.Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an ideal solution

4.How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case

5.Are you engineers available for overseas installation and training matters?
Yes,and all the relative costs should be covered by you
