450/13 DL Aluminium Wire Rod Breakdown Machine Stop Automatically When Wire Breaks

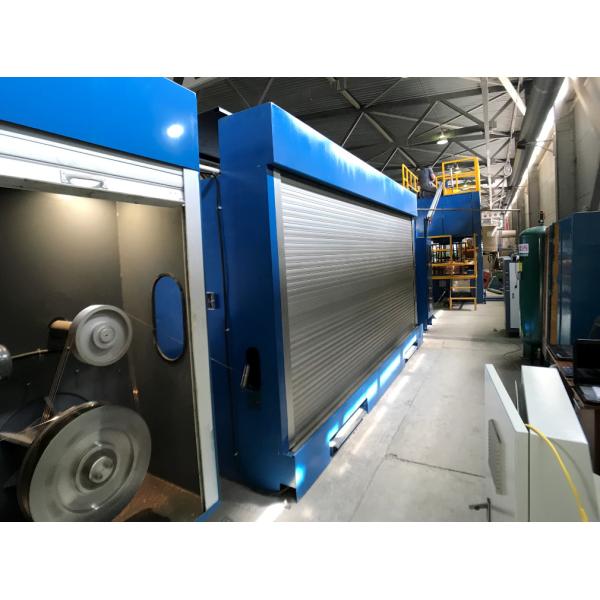

HXE-450/13DL Aluminium wire rod breakdown machine

I. Application

HXE-450/13DL Aluminium rod breakdown machine is used to draw single bare aluminium wire from 9.5mm to 1.7mm-4.2mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.

II. Compositions of equipment

III. Main technical parameters

IV. Operation details

1. Open the power switch of the electrical cabinet.

2. Use the Foot-switch while make the wire through the dies.

3. After make the wire through some dies, should open the lubrication oil to make sure no wire break.

4. Make the wire through the take-up part well arranged, then close the door.

5. According to the user`s require to set the Length-counter, adjust the balance arm.

6. If wire breaks, will stop automatically, and the Fault Indicator light will open.

After connect the wire, press the Fault Reset button(Yellow button) and the On button (Green button), to run the machine again.

7. Press Emergency Stop button(Red button) to shut down the machine immediately.

After solve, press the button again to run the machine.

8. After set the Length-counter, the machine will stop automatically when reach the length set.

After change the Spool, please press the Length Reset button(Yellow button) and the Spool Reset button(Yellow button) to run the machine again.

9. After the machine stop(no running at all), then switch the Pump switch to stop the lubrication.

V. After-sale service

Warranty: after shipping, machine part one year, electrical parts six months

Under these situation mentioned, the Seller will not take responsibility, but if the Buyer agree, will charge fees accordingly to repair the machine.

A. Due to wrong operation while shipping.

B. Due to Buyer`s wrong preparation that may cause damage to the machine.

C. Due to Buyer`s wrong operation that may cause damage to the machine.

D. Not in the consuming part list.

E. After agreement are made for the shipping, for any damage, Buyer should inform Seller in letter form to repair in seven days, If beyond the dare, Seller shall take no responsibility.

F. For any other failures due to acts of God (such as lightning, typhoon, earthquake, riots, war, fire or flood) and other factors that will cause damage, Seller shall take no responsibility.Seller guarantee provide long term support regarding the parts and teach. After warranty, will charge accordingly.

      Suzhou Hengxie Machinery Co., Ltd was established in 2005, a total professional in drawing machine field, specialized in copper and aluminium wire drawing machines. Located in Suzhou City, very close to Shanghai, we share a convenient transportation and the most successful working environment.

Our 6,700 square meters of land allows producing a wide range of equipment, developing and researching new products. We always strive to introduce the latest international techniques to update our products.

With management concept of “Excellent quality, Reasonable prices, Superior services”, our hope is to not only meet our customers` expectations but to exceed them.

Here are the machines we have: Copper&Aluminium Rod Breakdown machine, Large and intermediate wire drawing machine with online annealer, Intermediate wire drawing machine, Intermediate wire drawing machine with online annealer, Fine wire drawing machine, Fine wire drawing machine with online annealer, Customized fine wire drawing machine with annealer, Super fine wire drawing machine. As long as we talk, we can always meet your detail requirements.

Our market includes both domestic and overseas. Such as Bangladesh, Egypt, Iran, Malaysia, Syria, Algeria, Kenya, Turkey, South Africa, Latin America and so on.

With the concept of “Stable quality and mutual development”, Hengxie welcome all customers from the world to create a sincere cooperation and win-win benefit in the future.
