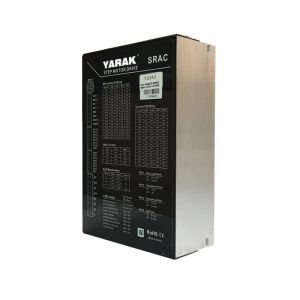

    Y2SA3 8.0A High Voltage Stepper Motor Driver 2 Phase With Alarm Output 70-150VAC Input

    Y2SA3 8.0A High Voltage 2Phase Stepper Drive with Alarm Output 70-150VAC input for Nema23 to 47 Hybrid Stepper Motors


    1. Products Overview

    Y2SA3 also has an input voltage range from 70VAC to 150VAC and output current 0.4 to 8.0A.

    Y2SA3 is widely used in high current applications with AC power supplies, also have high reliability, and great speed torque performance.


    Some advantages:

    High precision: The stepper motor drive is very accurate, so high precision motion control can be achieved.

    Without accumulated errors: Unlike the servo motor, the stepper motor driver will not accumulate errors, and the steps of each rotation or movement are fixed.

    Quick response: Stepper motor driver has a short response time, which can achieve precise motion control in a short time.

    Energy saving: Because the stepper motor driver only receives the electrical pulse when it is needed, it has low energy consumption.

    Simple maintenance: The structure of the stepping motor drive is simple, so it is relatively easy to maintain.

    Higher torque: High-voltage AC stepper driver enables stepper motor higher ourput torque.


    Step drives are widely used in factory automation, carving machines, electronic product manufacturing, logistics sorting, robots, various special automation equipment, medical equipment, CNC machine tools, laser equipment, printing machinery, material processing, safety system, navigation system, industrial test and measurement etc. There are many fields such as measurement and metering systems.


    2. Main Technical Specifications

    ItemDescription
    Input Voltage70 to 150VAC
    Output Current0.4 to 8.0A (Peak)
    Control Mode

    Pulse and Direction,

    CW and CCW

    Control Signal5VDC and 24VDC Compatible

    Micro Step

    Range

    16 Types,1-128 Micro Step Settings,

    From 200 to 25600 Pules/Round

    Idle Current25%,50%, 70% or 90% by Setting DIP Switch
    Special Functions

    Auto Tuning, Self Test, Alarm Output, Micro Step Interpolati

    Load Inertia Optimization

    Input signal

    Filtering

    150KHz Digital Filtering for Low Micro Step Scenarios

    2MHz Digital Filtering for High Micro Step Scenarios

    Protection

    Metal, High EMC Performance,

    Multi-Level Electrical Protection

    Matching MotorsAdaptive to Stepper Motors of Nema23 to Nema47
    Power SuppliersNo Need AC/DC Power Supplies or Transformers

    3. Stepper Driver External Interfaces


    4. LED Status Indicator Description

    Based on LED status indicators, driver working status or abnormal causes can be identified.

    5. Output Current Settings

    Switch SettingsY2SA2
    SW5SW6SW7SW8Peak Current/A
    OffOffOffOff8.0
    OnOffOffOff7.3
    OffOnOffOff6.6
    OnOnOffOff5.9
    OffOffOnOff5.2
    OnOffOnOff4.5
    OffOnOnOff4.0
    OnOnOnOff3.5
    OffOffOffOn3.0
    OnOffOffOn2.5
    OffOnOffOn2.0
    OnOnOffOn1.8
    OffOffOnOn1.2
    OnOffOnOn0.9
    OffOnOnOn0.6
    OnOnOnOn0.4

    Idel current settings,


    DIPSetting 1Setting 2Setting 3Setting 3
    SW9On25%Off50%On70%Off90%
    SW10OnOnOffOff

    6. DIP Switch Seetings

    Switch SettingsY2SA2
    SW1SW2SW3SW4Micro StepPulse/Round
    OffOffOffOff12525000
    OnOffOffOff10020000
    OffOnOffOff5010000
    OnOnOffOff408000
    OffOffOnOff255000
    OnOffOnOff204000
    OffOnOnOff102000
    OnOnOnOff51000
    OffOffOffOn12825600
    OnOffOffOn6412800
    OffOnOffOn326400
    OnOnOffOn163200
    OffOffOnOn81600
    OnOffOnOn4800
    OffOnOnOn2400
    OnOnOnOn1200

    7. Other DIP Settings

    DIP no.FunctionDescription
    SW13

    Pulse Mode Selection

    On: CW and CCW
    Off: Pulse and Direction

    SW14

    Input Signal

    Digital Filtering

    On: 150kHz, suitable for low micro step settings Off: 2MHz, suitable for high micro step settings

    SW15Micro Step Interpolation

    On: Micro Step Interpolation enabled, suggest to use when micro step is less then 8.
    Off: Function disenabled.

    SW16

    Self Test

    On: motor will rotate at 1rpm/s for 1 round clockwise and 1 round back.
    Off: Function disenabled.

    8. Control Signals

    Input signals descriptions as the followings,

    DisplayTerminal nameFunction
    STEP

    Pulse signal

    Receive 5-24V/NPN/PNP signal

    DIR

    Direction signal

    Receive 5-24V/NPN/PNP signal

    EN

    Enable signal

    Receive 5-24V/NPN/PNP signal; EN no input, motor enable

    9. Connections

    Input connections:

    Input connections:


    10. Mechcanical Dimenssions
