High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

SINO Digital Readout Display High-Precision 2-Axis SDS2MS With Linear Glass Scale

Overview of Dual Axis SDS 2MS Digital DRO and KA Grating Ruler

1. Dual axis DRO: This kit allows you to control and observe the machine's movement along two axes, such as the X and Y axes in a mill. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the expected point.

2. Magnetic ruler encoder system: The KA linear ruler encoder system uses magnetic technology and works with the DRO display unit and the magnetic glass scale installed on the machine.

3. Wide voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100 and 240 volts AC. Any device has its appropriate operating voltage, and only when the required voltage is met can the device function properly.

4. User friendly interface: The DRO display unit has an easy-to-use interface consisting of buttons and a digital display screen. Users can switch between different measurement data by using function buttons and select appropriate readings to assist in device adjustment.

Capabilities possessed:

1. Radius to diameter conversion.
2. MM/Inch conversion.
3. Absolute/relative conversion.
4. Mid-splitting function.
5. Simple "R" function.
6. Smooth "R" function.
7. Position the PCD hole on the circumference.
8. 200 groupings with zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v to 250 v, 50 Hz to 60 Hz.

2. 15W power consumption: 25 volts

3. Coordinate the integer using a coordinate and two coordinates.

4. Demonstrate that signed seven displays (two or three axes) emit data information using eight meters of words and symbols.

5. Net Weight: 1.3kg (2.9lb)

6. The input signal is TTL, and the output signal is EIA-422 open collector, making it easy to link with a programmed controller.

7. Allow the input signal frequency to exceed 100 KHz.

8. Connect a resolution of 10 microns, 5 microns, 2 microns, 1 micron, and 0.5 microns.

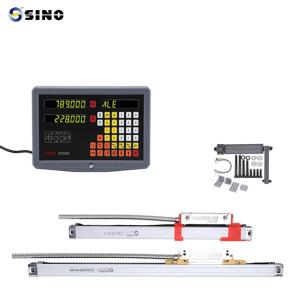

Product image /photos:

​

The rack in the picture is optioned, not standard product.

Our company, Guangzhou SINO International Trade Co., Ltd is located in Guangzhou city, Guangdong province, China. Guangzhou SINO International Trade Co. LTD is the subsidiary of the SINO group. SINO specializes in the development and manufacture of high-precision measuring products since 2002. It has a series of the world’s most advanced equipment and has been certificated by IS09001, CE, RoHS, and the electrical safety standards for European authentication. The competitive products linear grating ruler and digital readout are famous in the world. With untiring efforts in development in this area since 1989, the best seller in China for the last ten years.

SINO is the leading linear encoder & DRO manufacturer in China. Our main products included linear scales encoder, magnetic encoder, angle encoder, and DRO displays suitable for milling, lathe, EDM, grinding machine, boring machine and we keep developing and improving to move forward with very good quality. The company has cooperated with many clients from overseas and has obtained consistently high praise from our customers since it was set up. The company tries its best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing, and shipment. We insist on the principle of development of 'All we do are clients need' to provide you with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation.
