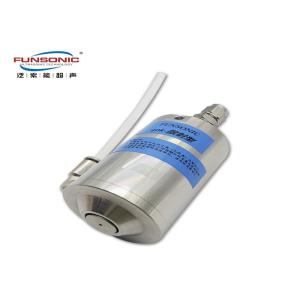

40Khz Scattering Ultrasonic Nozzle Atomization Coating
Semiconductor Chip Calcium Titanate Solar Cell
Description:
Scattering nozzles use low-pressure air/gas to generate uniform and
wide spray patterns, with each nozzle reaching a maximum of 9.8
inches (25 centimeters) depending on the distance from the
substrate. The speed of the air flow is controllable to allow low
or high impact of the atomized spray on the product or substrate.
Using multiple nozzles in series can achieve infinite width.
Scattering nozzle design is used for wide patterns with high
repeatability in slender nozzles.
The scattering type ultrasonic nozzle is an ultrasonic atomizing
nozzle with a cyclone cone spray. It uses the ultrasonic
atomization nozzle technology, and through the special vortex flow
channel design, the carrier gas is converted into a uniform
rotating airflow, so that the ultrasonic atomization of the liquid
mist is dispersed in the form of a cyclone spray, expanding the
spray area of the atomizer. Ultrasonic nozzles can also be sprayed
on vertical or curved surfaces and other substrates with sharp
edges.
The typical application of scattering type ultrasonic nozzles is
the photoresist coating on semiconductor chips, where the
photoresist is sprayed onto the semiconductor chips. Due to the
rotational scattering of mist emitted by the scattering type
ultrasonic nozzle, a uniform photoresist film can be formed not
only on the wafer plane, but also on the sidewalls and corners of
the wafer microstructure. In addition, scattering ultrasonic
nozzles can also be used for thin film solar cell coatings, calcium
titanate solar cell coatings, AR transmission and reflection film
coatings, insulation film coatings, superhydrophobic coating
coatings, PCB flux coatings, and other applications.
Parameters:
| Model | FSW-4002-L |
| Name | 40Khz Scattering Ultrasonic Nozzle Atomization |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 35-48 |
| Spray width(mm) | 20-80 |
| Spray flow(ml/min) | 1-10/2-20/3-40 |
| Spray height(mm) | 30-150 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <12 |
| Diversion pressure (Mpa) | <0.08 |
| Application | Suitable for full surface spraying of flux |
Advantage:
1. High stability: Made of high-performance titanium alloy and
stainless steel, it has strong adaptability, corrosion resistance,
no pressure, no noise, no nozzle wear and blockage, and high
uniformity of atomized particles.
2. Material saving and environmental protection: the impact of
spray is very small, which will not cause liquid splashing, thus
reducing the waste of raw materials and air pollution caused by
back spraying. The material utilization rate of ultrasonic spraying
is more than 4 times that of traditional two fluid spraying.
3. High controllability: it can accurately control the atomization
flow, low flow continuous spray, and spray shape is easy to control
and shape (increase the spray manipulator), which is applicable to
the industrial field. By combining, the atomization amount can meet
any requirement.
4. Easy maintenance: The liquid is transmitted to the spray head
through its own gravity or low-pressure pump and realizes
continuous or intermittent atomization. There is no blockage, no
wear, no noise, no pressure, and no moving parts. When atomizing,
there is no need for cooling water. The energy consumption is
small, the equipment is simple, and the failure rate is low. The
ultrasonic spray head has the function of cleaning and daily
maintenance free.
