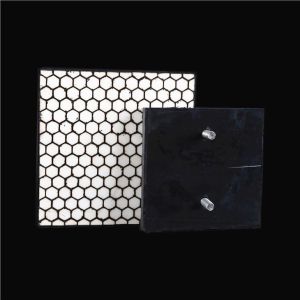

Ceramic Rubber Panel With Steel
Product discription
Ceramic Rubber Panel With Steel is excellent for application of
high impact and extreme wear. The alumina provides a very smooth
surface for material flow and actually reduces its resistance to
friction with service life. The elastomer backing also helps to
reduce vibration and noise levels within the plant and is
engineered to resist the size and type of impact experienced for
each individual project.
Advantages
Ceramic Rubber Panel With Steel performance characteristics:
1. High hardness: Generally, the hardness is greater than HRA80 or
more, and the highest can reach more than 92;
2. Good wear resistance: at least 200 times that of ordinary carbon
steel and 10 times that of high-chromium cast iron;
3. Light weight: the specific gravity of alumina is generally only
about 3.6, that of silicon carbide is about 2.7, and that of
zirconia is about 6;
4. Good heat resistance: The heat resistance of different
wear-resistant ceramics is not the same, but this product is used
in the occasion of resistance to particle erosion, and there is no
problem with heat resistance.
Parameter list
| Panel Size | 300x300, 200x200, 225x225, 250x250, 400x400, 425x425, 500x500,
600x600 |
| Ceramic Size | Ceramic tiles are available from 10x10mm to 100x150mm; thickness of
ceramic tile can be from 1.5mm to 50mm |
| Backing Plate | Steel plate with thickness ranging from 3mm to 10mm(optional) |
| Rubber Thickness | Depends upon the impact stress expected or customer requirement. |
| Remarks | Metal+Rubber+Ceramic/Rubber+Ceramic Plain surface or Spherical. Studs also availiable upon request
Custom shapes can be made. |
Application
Raw Material Feed
Head Chute Liner
Impact Curtains
Chute Liner
Rock Boxes
Skirt Board
Bucket LIner
