    Single Horizontal Bead Mill Machine 250 Liter Grinding For Chemical Fiber Titanium Dioxide

    Ask Lasest Price
    Brand Name : Allwin
    Model Number : SP/AP/HZ PLUS 250
    Delivery Time : 25-60 days
    Payment Terms : T/T
    Price : USD 43800-76700
    • Product Details
    • Company Profile

    Single Horizontal Bead Mill Machine 250 Liter Grinding For Chemical Fiber Titanium Dioxide

    Product Description:

    The Bead Mill Machine is a versatile grinding mill machine designed for grinding materials,such as TiO2 ,Fe2O3, Al2O3, LFP, etc in various field. Our 250 liter bead mills are widely used in Titanium dioxide and chemical fiber industry. customers choose different models and different parameters according their different budget and different technical requirements.


    The bead mill machines are produced with volumn from lab 0.5 liter to batch 250 liter with different series, like SP, AP, HZ PLUS model. Each model has its key advantage. This grinding mill machine is reliable and easy to use, allowing for efficient grinding,long-lasting performance,easy to operate.

    Features:

    • Product Name: Bead Mill Machine
    • Material: (out chamber)Stainless Steel,(inner chamber) stainless steel or Silicon carbide ceramanics(no contaimination),
    • Dispersing and grinding system: SP/AP model: static discharge , HZ PLUS model: dynamic discharge, material: SS 304 coated with PU(no contaimination)
    • Grinding Mode: Batch Grinding By Series Or Single
    • Weight: 3000---3200 KG
    • Grinding Chamber: 250 Liter
    • Keywords: grinding mill machine, bead mill, sand mill
    • Key advantages: high quality; competitive price, high efficiency,lower temperature,customizeation

    Technical Parameters:

    ParameterValue
    Product NameBead Mill Machine
    Grinding MediaCeramic Grinding Beads (95% ZrO2 balls)
    Grinding media ratio65-75% of net chamber
    MaterialStainless Steel and PU
    Cooling SystemWater Cooling For Chamber And Mechanical Seal
    Protection SystemOverload Protection, Over-temperature Protection, Over-pressure Protection,etc
    Control SystemPush Button Control( standard specification)/ PLC touching control( higher level,optional)
    Power55KW/75KW (different model and parameter choose different motor power)
    Voltage380V (Standard), others optional according to customer's condition
    Grinding Net Chamber250 Liter
    Discharge mannerStatic/ dynamic screen ring/ slotted pipie with gaps
    Feeding pumppneumatic pump/ gear pump
    Horizontal Bead Milling MachineYes

    Support and Services:

    Technical Support and Service for Bead Mill Machine
    • Provide 24/7 customer service to answer any technical inquiries of customers. Feedback will be prompt.
    • Provide professional technical advice and solutions to customers in a timely manner.
    • Regularly evaluate and improve the performance of Bead Mill Machine.
    • Maintain and repair Bead Mill Machine according to customer requirements.
    • Provide professional guidance and training on the use of Bead Mill Machine.

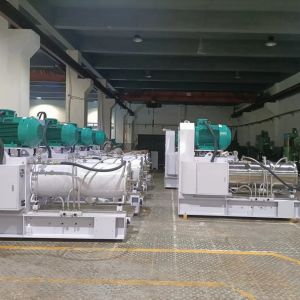

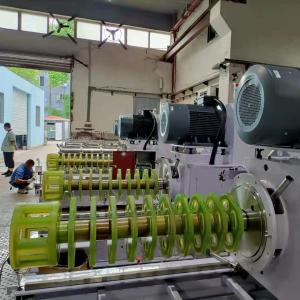

    Pictures of Bead Mills:

    Customer Visits:

    Quality Single Horizontal Bead Mill Machine 250 Liter Grinding For Chemical Fiber Titanium Dioxide for sale
