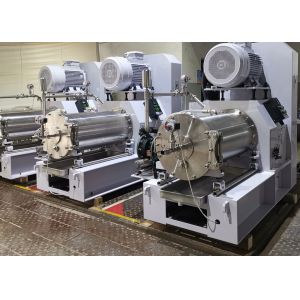

20% higher effeciency Paint Sand Grinding Mill 75kW EX Proof Double End Mechanical Seal

    Buy cheap 20% higher effeciency Paint Sand Grinding Mill 75kW  EX Proof Double End Mechanical Seal from wholesalers

    Buy cheap 20% higher effeciency Paint Sand Grinding Mill 75kW  EX Proof Double End Mechanical Seal from wholesalers
    • Buy cheap 20% higher effeciency Paint Sand Grinding Mill 75kW  EX Proof Double End Mechanical Seal from wholesalers
    • Buy cheap 20% higher effeciency Paint Sand Grinding Mill 75kW  EX Proof Double End Mechanical Seal from wholesalers
    • Buy cheap 20% higher effeciency Paint Sand Grinding Mill 75kW  EX Proof Double End Mechanical Seal from wholesalers

    20% higher effeciency Paint Sand Grinding Mill 75kW EX Proof Double End Mechanical Seal

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP150
    Certification : ISO9001
    Price : USD40000--USD55000/set
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 30sets /month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    20% higher effeciency Paint Sand Grinding Mill 75kW EX Proof Double End Mechanical Seal

    Large Flow Energy Saving Double-end Mechanical Seal 150L Wet Grinding Mill


    The mian feactures:


    1. Greater production capacity with large flow static discharging and energy saving with great cooling system.


    2. Guarantee product quality reproducibility according to our everlasting tests and optimization.


    3. High reliability system with high precesion manufacturing by the world-leading CNC machines.


    4. Low operating cost according to use less humans to operate machines.


    The working principle:


    The working principle is to use the material input pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, then the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharging pipe.


    The main parameters:


    NO.Main parameterSP150Note
    1Main motor power(kW)55/753phase,380V 50Hz
    2

    Effective Volume(L)

    150
    3Water presure Mpa0.3
    4

    Cooling water consumption

    (L/min)

    2.5 -3m3/h

    The lower limit can be

    selected for the water consumption, in case that the cooling water temperature is lower than 10℃.

    5Overall dimension (mm)1950*950*1950
    6Weight (kg)2100

    The main instructions:


    NoMain partsSP150 Horizontal Sand MillNotes
    1Outer cylinder304 stainless steel
    2Internal cylinder9Cr18Mo wearing-resistant alloy steel
    3Dispersing shaft40Cr with hard chromium platingBrand: NSK
    4Dispersing disk304 Stainless steel
    5Mechanical sealDouble Mechanical seal with Pressure of 0.45 Mpa
    5Feeding and discharging end covers on the cylinder304 stainless steel
    6Turbine centrifugal separator and pegs304 stainless steel and YG6 pges
    7Static discharge screen ring304 stainless steel screen ring with 304.Gaps: 0.5mm.
    8Mechanical seal

    Intelligent double mechanical

    seal with mandatory

    lubricating-cooling system

    9Feeding pump1.5" aro diaphram pumpBrand: Ingersoll Rand
    10Operating controlbutton type or PLC (optional)
    11Electric configurationNon Explosion-proof motor(suitable for water based materials). Non ex-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with non EX-proof electrical contacts.explosion-proof motor optional (suitable for oil based materials)
    12Fasteners and connecting parts

    Stainless steel clamp-type

    connecting parts

    Quick and convenient

    The production show:



    The Application:




    The Main processing equipment:


    The United States imported four axis Haas machining center



    The Company introduction:


    Allwin Machine & Equipment Co., Ltd. is a manufacturer specialized in researching and development of wet grinding machine, such as Bead mill, Sand mill, and dispersing machine in Chongqing, China, our mission is providing customers with high valuable mills and solutions.


    Since founded in 1993, Allwin have been concentrating on grinding-dispersing technologies for half a Century. Mr. Wang Yongqi, Our Chief Engineer of Allwin Machine Equipment Co, Ltd and senior engineer developed the Chinese first sand mill in 1967.Over the past 28 years; Allwin machine has made great achievements through bold innovation and continuous practices. We have 11 patents about bead mills (sand mills) and won the certificate of IPR compliance. We could offer both grinding bead mills and production lines for wet grinding users. In the past 6 years, we made more than 300 experiments for dispersing and grinding, have more than 1300 bead mills applications in different fields.


    Great cooperations with Interantional customers
    With nearly 30 years insisting on innovation in technology and great sales service, ALLWIN has won many famous international company trust, builded long term cooperation. Such as AkzoNobel from Netherland, Kensai from Janpan , Musashi Paint from Japan, Alesco from Japan, Beacon Coatings from China, SKSHU from China. ALLWIN aims to creat values for our each customers.
    If you want to manufacture great products,please contact us immediately,we can promise our machine with best competitive price with most values.
