SUS304 100 Litre Wet Bead Milling Button Disc Type Bead Grinding Machine

SUS304 250 Litre Wet Bead Milling Button Disc Type Bead Grinding Machine

The main introduction:

This Sand Grinding Mill is main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.

The Technical Data of sand Grinding Mill:

1. Outer chamber materials: 304 stainless steel

2. Inner Chamber materials: 304 stainless steel or you need

3. Dispersing shaft: 40Cr with hard chromium plating

4. Dispersing disk: PU coated 304 stainless steel

5. Feeding and discharging end covers on the cylinder: 304 stainless steel

6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

8. Mechanical seal: Intelligent double mechanical seal with German technology

9. Feeding pump: 1.5” ARO diaphragm pump;

10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).

11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

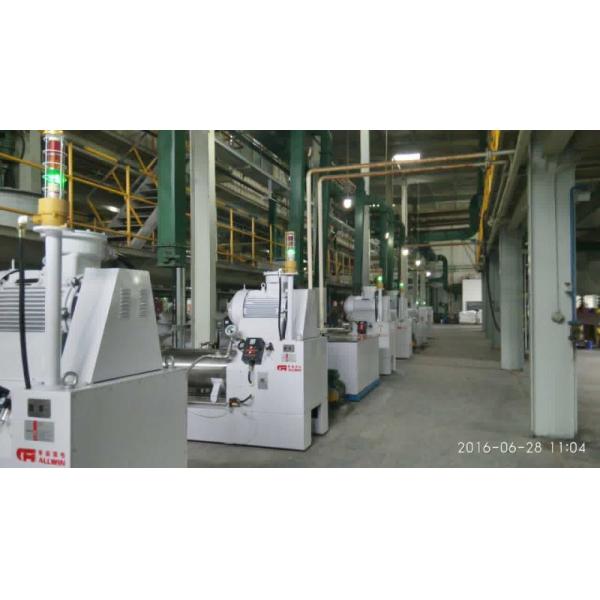

The Customer site pictures of sand Grinding Mill:

The Application filed: Paint and Coating, Pigment and dyestuffs, Printing inks/ Digital inkjet ink, Gravure inks, Medicine and Cosmetics, Pesticide and Agrochemical industry, Food and food processing, on-metallic minerals, I-Tech nanometer products, Paper and Paper making chemical.

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as Touch Screen or traditional Button type.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
