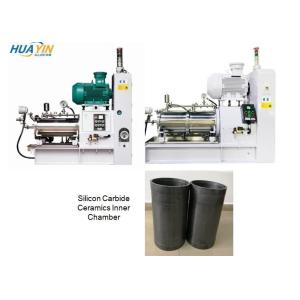

    Compound Disperser Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP30/ 50/100
    Certification : ISO9001
    Price : USD25000--USD50000/set
    Payment Terms : T/T, MoneyGram, Western Union, L/C,
    Supply Ability : 30sets /month
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

    Compound Disperser Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​


    Compound Disperser Type Static Discharging Grinding Horizontal Bead Mill Machine In Industrial Coating​


    The compund disperser type horizontal grinding bead mill is rather suitable for industrial coatings, especially the viscosity is higher than normal. The engineers take a full consideration of each dispersers' shapes, weight, function, capacity. And the material and the particular compound type can be different according to different condition.


    Advantages:


    1. Extend working-life : The compund disperser type horizontal grinding bead mill machines adopt high abrasive-resisting materials:like silicon carbide ceramics, hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel.

    2. Decrease the temperature: The compund disperser type horizontal grinding bead mill machines apply self-owned double spiral cooling technology to enhance the heat rejection, with superior material with good thermal conductivity.

    3. Strenghten the fineness: The compund disperser type horizontal grinding bead mill machines could chose to process dispersers with different shapes and functions to achieve the great fineness when grinding materials' viscosity is higher than normal. The diameter of grinding medium can from 0.6mm to 3mm.

    4.Enhance the efficiency:According to effectively control more factors, such as grinding bead materials. size. material viscosity, chamber vulume, motor power, cooling,etc,which can effect efficiency. The more factors are taken into consideration, the higher efficiency can be reached.

    5. Lessen the personnels:The horizontal grinding bead mill machines adopt light alarm indicator, which can show the normal or abnormal condition of machines far away. One worker can operate more than 5 machines.


    Display:


    Technical data of static discharging horizontal bead mill machine

    NoMain ParametersSP30/50/100Notes
    1Motor power
    (kW)
    22/30/37/55 KWEx-proof/non ex-proof available
    2

    Effective volume of

    grinding chamber (L)

    30/50/100L
    3Water pressure
    (MPa)
    0.3 MPa
    4Cooling water consumption (L/min)2.5 -3m3/hAdvision: Users offer the Cooling water less 10°C
    5Dimensions:L*W*H
    (mm)
    according to volume and material
    6Weight
    (kg)
    according to material and chamber
    Configuration Instructions of horizontal grinding bead mill
    NoMain partsSP30/50/100Notes
    1Material of External vesselSUS 304 stainless steel
    2Material of Inner grinding vesselSilicon Carbide Ceramics,9Cr18Mo alloy steel, sus304different mateials optional
    3Material of Dispersing shaft40Cr with hard chromium platingNSK
    4

    Material of Dispersing disk

    (agitator disk)

    Cr12MoV, GCr15, 9Cr18Mo alloy steelChoose what you need
    5Feeding and discharging end covers on the cylinderSUS 304 stainless steel
    6Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.
    7Mechanical sealDouble end mechanical seal
    8Feeding pumpG1",G1.5” ARO diaphragm pump;IngersoII Rand

    The main processing equipment:

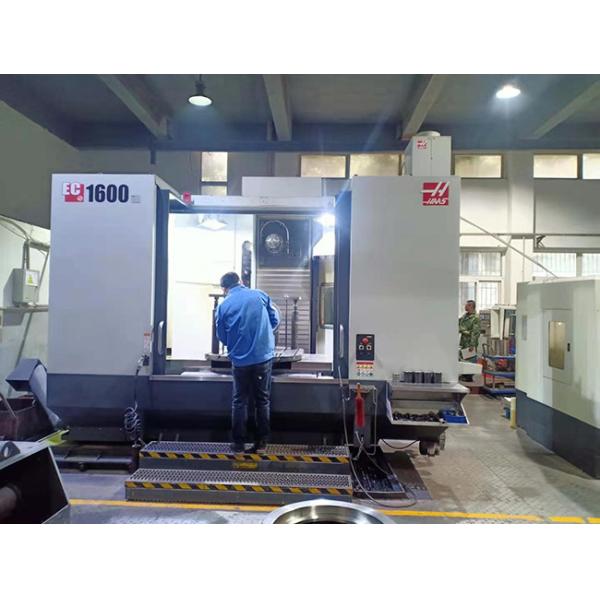

    The United States imported four axis Haas machining center


    3 Axis machining center


    The processing

    The packing


    FAQ


    1.How to choose the appropriate sand mill?


    Please tell us the raw material of grinding, the input finness and output finness you need, production capacity per houre or per day, other special requirements like temperature , color, explosion performance,etc. Then we offer the most appropriate instrustions of wet grinding sand mill.


    2.How to ensure the grinding machine can operate regularly after taking delivery?


    Firstly, we offer running test before shipping. Secondly, operation instrustion will be delivered with the equipment, you need to read the instructions first. Thirdly, we can offer vedio instructions to help installment, maintance. Finally, if all methods have tried and the machine could not operate regularrly, we could arrange enginner to solve the problem( this may need additional fees).


    3.Are you the supplier and manufacturer of wet grinding sand/bead mill, rather than a trader or middle man?


    ALLWIN is the professional manufacturer of grinding and dispersing machines , located in TONGXING industrial zone, Beibei, Caijiagang Town, Chongqing, China. ALLWIN has won famous reputation in China and old friendly customers, llike AkzoNobel, Kansai Paint, Musashi Paint, Beacon Coatings,etc. Welcome any potential customer to visit our factory.
