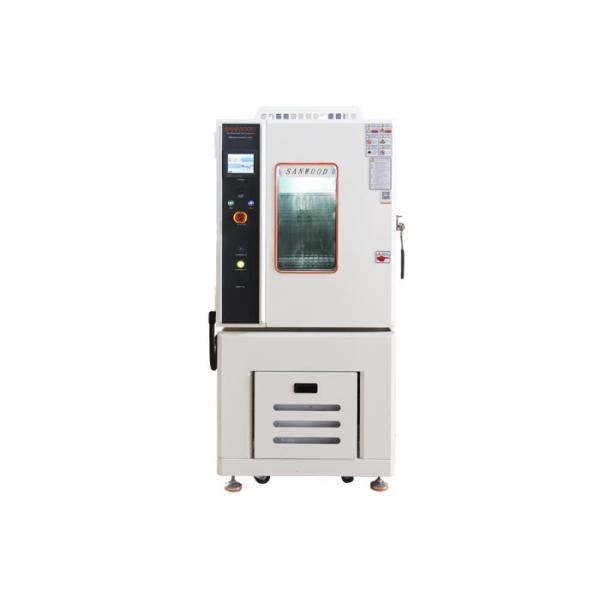

Energy-Saving Temperature Humidity Test Chamber Introduction:
The constant temperature and humidity test chamber is widely used
in scientific research, research institutes, quality inspection
institutes and other industries to do warm and humid heat tests of
electronic and electrical products, materials, parts, equipment,
etc., alternating heat test and constant temperature test, etc.
Also could do high and low temperature routine tests, low
temperature storage, in order to evaluate the performance of the
sample under given environmental conditions.
It's widely used for industries of Electronic and Electric,
Equipment and Instrument, Plastics & Rubber, Construction,
Communication, Research and institute, Energy and Laboratories,
etc.
Standard Met and Implemented
IEC60068-2-1 low temperature test method
IEC60068-2-30 humidity temperature cycleIEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
GB/T2423.1-89 test A: low temperature test method
GB/T2423.2-89 high temperature test method
GB/T2423.3 constant humidity heat test method
GJB150.4-1986 test at low temperature
Energy-Saving Temperature Humidity Test Chamber Features:
1. Observation window: tempered glass with lighting
2. 15L drawer type water tank, located in front of the machine,
under the door.
3. Stainless steel sample holder 2 layers, height is adjustable,
load-bearing (uniform): 20kg/layer
4. Our circuits are arranged in accordance with international UK
standards and are equipped with complete circuit diagrams. Each
line has a clear line number, which is clearly defined and clearly
defined.
5. We use electrical components of internationally renowned brands,
such as France Schneider, Switzerland Carlo Gavazzi ,Japan
Mitsubishi, Korea Rainbow, Korea SAMWONTECH and so on.
6. Unique self-made polished door lock design, using the principle
of leverage, the door is closed and easy to operate, reliable,
stable, durable, easy to operate, long life.
7. Unit module standardization: Convenient installation,
commissioning and subsequent maintenance are more convenient and
cost-effective.
Temperature Humidity Test Chamber Technical Specifications
| Model | SMC-225-CD | | Temp. range | -70°C ～150°C | | Temperature stability | High±0.5°C ,low ±1.0°C | | Temperature uniformity | ≤ ±2.0°C | | Heating rate | -70°C ～150°C heating rate 3.0 ~ 5.0°C/min | | Cooling rate | 150°C ～ -70°C cooling rate 4.0°C/min, nonlinear | | Inner size (WxHxD) mm | 500x750x600 | | Outer size (WxHxD) mm | 700x1880x1290 | | Interior material | Stainless Steel Plate ( SUS 304) | | Exterior material | A3 plate with power coating, Sanwood standard color | | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | | Ambient Temp. | +5°C ～+35°C | | Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | | Weight | 450KG | | Sight window size | 450 X 450mm | | Sample holder | 2 pcs | | Fittings | cable port(portΦ50mm)*1, size is optional | | Control System | Balanced Temperature & Humidity Control (BTHC)System | | Refrigeration system | Air Cooled (Water Cooled is option) | | Hermetic compressor | | Double stage refrigeration system, | | R23, R404A | | Controller | 5'7-inch LCD Touch Screen panel | | Operation model :Program or fix point running | | Memory capacity :120programs,1200steps, | | All repeat 999 cycles, part repeat 99 cycles | Note: 1. We reserve the right to change specifications without
prior notice 2. Customized sizes and configurations available |
|
