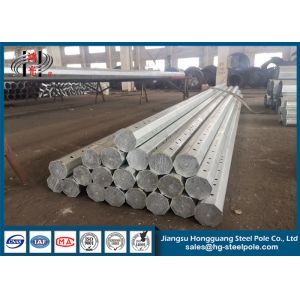

    Conical Flange Connection 110KV 30FT Electric Power Line Post

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Conical Flange Connection 110KV 30FT Electric Power Line Post

    110KV 30FT Costomized Shape Steel Electric Pole

    Product Description:

    The material is in accordance with NF c Standard and NF EN 10149 Standard,it has the following property.
    - Yield Strength=355N/mm2
    - Toughness remains the same under 20 degrees below zero.
    - Galvanization is in accordance with NFA35503 Standard Class 1.


    Manufacture Tolerance
    - Component Length:-25mm to 75mm
    - Straightness:2mm/m
    - Twisting degree:1°per 3 meters length
    - Ovalisation:Maximum is 3%
    - The average diameter:+/-0.5%
    - Slip length:+/-150mm

    Product Specification:

    Products
    • Anti-corrosive Steel Electric Pole with Climbing Rung For Power Transmission Line Project
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 10~220KV
    Once Forming
    • 12m Once forming without joint
    Our service
    • Reply within 24 Working Hours

    • Factory Direct Sale

    • More than 15 Years Design & Manufacture Experience

    • Capable to Handle Volume Orders

    • High-Quality and Low-Price Products

    • Provide Professional Design by Our Experienced R&D Engineers

    Shape
    • Costomized
    Advantage
    • Weather Resistance

    • Anti-corrosion

    • ODM & OEM are available

    • Capable to Handle Volume Orders

    • Provide Professional Design by Our Experienced R&D Engineers

    Joint
    • Joint with insert mode, flange mode.

    Painting

    • According to clients' request

    Welding

    • According to AWS D 1.1, CO2 welding or submerged arc auto methods

    • No fissure, scar, overlap, layer or other defects

    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Product Description:

    The Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.

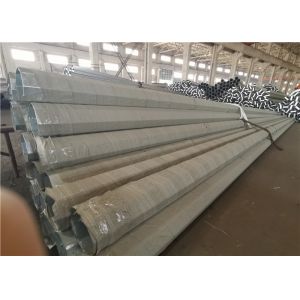

    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.
    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Please feel free to contact us!
