Product Description

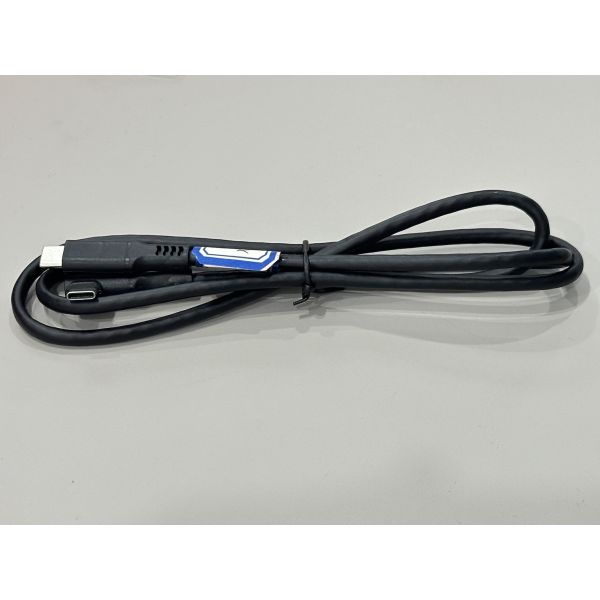

This USB Type-C to USB Type-C right-angle cable connector is
designed for reliable power and signal transmission between modern electronic devices. Both ends adopt Type-C male
connectors, with one straight plug and one 90-degree right-angle
plug, making it ideal for narrow spaces and side-mounted ports
where cable bending needs to be reduced.
The cable uses tinned copper electrical wire cores with optimized
pitch and shielding structure to keep data and power lines stable and low-loss. A flexible PVC/TPE jacket and molded
strain-relief at the terminals improve durability against repeated
plugging, bending and vibration. It can be customized for different
lengths, wire gauges, current levels and device layouts, supporting
OEM/ODM projects for consumer and industrial applications.
| Connector type | USB Type-C male to USB Type-C male connector |
| Connector style | One straight plug + one 90-degree right-angle plug |
| Function | Power charging and high-speed data transmission |
| Interface standard | USB 2.0 Type-C |
| Rated voltage | 5–20 V DC |
| Rated current | Up to 3 A (dependent on cable length and copper size) |
| Conductor material | Tinned copper wire |
| Wire gauge | 24–28 AWG combined power/signal core (customization available) |
| Cable outer diameter (OD) | Approx. 3.5–4.5 mm (can be customized) |
| Insulation | Electrical grade PVC / TPE |
| Jacket color | Black |
| Signal performance | Data transfer up to 480 Mbps (USB 2.0) |
| Operating temperature | −20 °C ~ +60 °C |
| Flame rating | UL-style electronic cable, RoHS compliant |
| Connector housing | Molded plastic with strain-relief |
| Shielding | Aluminum foil + braided shield (optional for improved EMI
performance) |
| Customization options | Length, wire gauge, color, logo, packaging, pin assignment |
| Application devices | Mobile phone, tablet, laptop, power bank, docking station,
automotive unit |
| Packing | Bulk bag or individual bag, as required |
Applications
Connecting smartphones, tablets or laptops with USB-C ports for
daily charging and data sync
Powering USB-C docking stations, hubs or external storage devices
from notebook or server USB-C ports
Embedded and industrial controllers that require a compact
right-angle Type-C connector in control cabinets
Automotive infotainment or rear-seat systems where the right-angle
plug reduces cable stress in tight spaces
Desktop setups for monitors, mini-PCs or peripherals when a short,
neat Type-C cable routing is required
Precautions
Confirm that both devices use USB Type-C interfaces and that the
required current and voltage are within the cable’s rating.
Do not sharply bend, crush or pull the cable by the wire; always
unplug by holding the connector housing.
Keep the connector terminals clean and dry; avoid contact with
liquids, dust or conductive particles.
Do not use the cable in environments exceeding the specified
temperature range or near strong heat sources.
For high-power applications (such as fast charging of laptops),
choose suitable wire gauge and length according to your system
requirements or consult for customized specifications.
