High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256
Encrypted
Key Features
- COFDM modulation.
- H.264/H.265 video compression.
- Full HD resolution, 1080p/i @60fps.
- Supports two channel videos simultaneously (optional).
- AES256 encrypted transmission, military-grade data security.
- Achieve stable signal transmission under non-line-of-sight and
high-speed movement conditions.
Product specification:
| Product name | High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256
Encrypted |
| Model Number | HCT531 |
| Modulation |
| Wireless modulation | COFDM( DVB-T) |
| Carriers | 2K |
| Bandwidth | Configurable from 1MHz to 8MHz, step by 1KHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Constellation | QPSK, 16QAM, 64QAM |
| Bitrates | 0.5Mbps to 31.67Mbps |
| RF |
| Transmission power | 10W(40dBm) or 20W(43dBm) |
| Frequency | 200MHz~860MHz |
| Tuning Step size | 1KHz |
| Video and Audio |
| Video input | HDMI or CVBS, auto-detected after system start-up Optional: two channel video input/encoding/transmit at the same
time |
| Video formats | 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@
50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL) |
| Video Coding | H.264/ H.265 |
| Audio input | Embedded HDMI or analog audio |
| Audio Coding | AAC, 16bit, stereo, 32Kbps |
| Encryption | AES256 |
| Others |
| Control method | Through our configuration panel, PC or other devices via Control
UART, comprehensive transmitter settings can be achieved. |
| Storage Temperature range | –40° to +80°C |
| Size | 180*136*38mm |
| Weight | 906g |
| Input voltage | 28V |
Overview

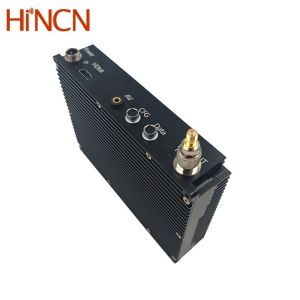

The HCT531 COFDM UAV transmitter is designed for use with HD or SD
cameras, offering superior miniature wireless video transmission
for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and
sports cameras. Featuring HDMI or AV inputs with COFDM modulation
technology and H.264/H.265 encoding, it delivers complete video and
audio transmission in high-speed motion and NLOS (non-line of
sight) conditions with low latency.
The HCT531 COFDM UAV transmitter provides up to 10W or 20W of power
in a compact metal case weighing less than 910 grams, ensuring
long-range, reliable HD video transmission.
Technical Specifications
| Input/Output Interface |
|---|
| HD Video Input | HDMI Type-A connector |
| Composite Video Input | 3.5mm earphone connector |
| UART Data | YC8-3 connector, TTL3.3V by default (optional RS232) |
| TTL UART Control | YC8-4 connector, TTL 3.3V |
| Power in | GX12-2 connector |
| RF output | TNC female |
COFDM UAV Transmitter Interface Signal
Frequently Asked Questions
Q1. Does your 10 watts/20 watts COFDM Wireless video transmitter
support changing frequency to be 1.2G/1.4G?
A: The transmitter frequency can be 160MHz~2700MHz, but our COFDM
wireless receiver only supports 170~860MHz. For 1.2G or 1.4G, a
frequency down converter is required at the receiver end.
Q2. Does this COFDM wireless video transmitter support SDI video
input?
A: Yes, our COFDM wireless video transmitters support HDMI, SDI,
CVBS AV, IP Ethernet RJ45 and AHD video input.
Q3. What's the max distance for the 10W PA transmitter?
A: For UAV applications, the transmission range is about 100km when
the UAV is at approximately 500 meters altitude with receiver
antennas positioned as high as possible.
