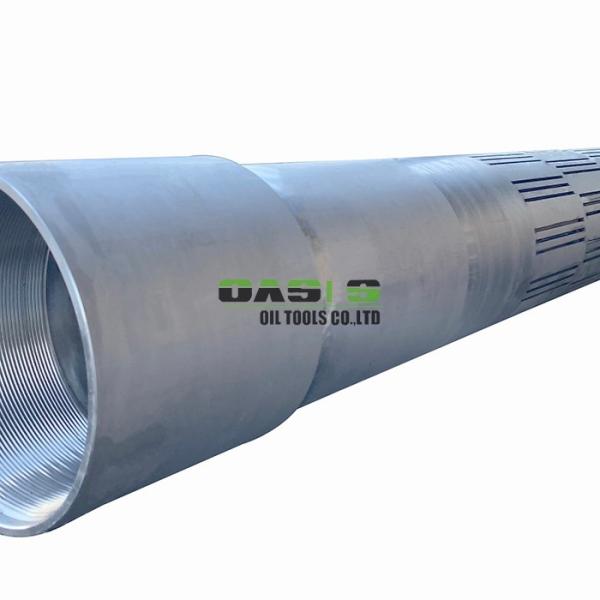

Slotted Casing Pipe – Reliable Sand Control for Oil & Gas Wells
Product Description
Slotted casing pipe is a critical component used in oil and gas
wells to prevent sand production, enhance well stability, and
maintain long-term productivity. Available in a wide range of
sizes, materials, and slot configurations, it offers customized
solutions for different well conditions.
Product Specifications
Outside Diameter (O.D.):
Casing: 4½″ – 20″ (114.3 – 508 mm)
Tubing: 1.05″ – 4½″ (26.7 – 114.3 mm)
Length: 4.88 – 14.63 meters (available in range categories R1 to R3)
Wall Thickness: 0.205″ – 0.875″ (5.21 – 22.22 mm)
Materials: Grades including J55, K55, N80, L80, C90, T95, P110, Q125, and
corrosion-resistant options like L80-9Cr/13Cr.
Standards Compliant: API 5CT, ISO 11960, GOST, JIS, and other international
certifications.
| API Casing | ID
mm | Length
m | Slot Length
mm | Slot
No.No./m
| Slot width
mm
| Slot Tolerance
| Valid Filter Area
cm/m
| Max. Strength
KN
|
| | | | | |
Spec
mm | Thickness
mm | Per Weight
kg/m | | | |
| | |
| | |
| 60.32 | 5 | 6.84 | 50.3 |
3
| 80
| 200 | 0.3
| ±50
| 48 | 512.54 |
| 73.02 | 5.5 | 9.15 | 62 | 240 | 57.6 | 688.55 |
| 88.9 | 6.5 | 13.22 | 75.9 | 280 | 67.2 | 995.1 |
| 101.6 | 6.5 | 15.22 | 88.6 | 300 | 72 | 1151.2 |
| 114.3 | 7 | 18.47 | 100.3 |
10
| 320 | 76.8 | 1400.4 |
| 127 | 7.52 | 22.13 | 112 | 340 | 81.6 | 1673.8 |
139.7
| 7.72 | 25.11 | 124.3 | 360 | 86.4 | 1900.2 |
| 9.17 | 29.48 | 121.4 | 360 | 86.4 | 2232.4 |
| 168.3 | 8.94 | 35.09 | 150.4 | 400 | 96 | 2672.95 |
177.8
| 8.05 | 33.68 | 161.7 | 440 | 105.6 | 2559.2 |
| 9.19 | 38.19 | 159.4 | 440 | 105.6 | 2940.7 |
Slot Types & Patterns:
We offer multiple slot designs to match your sand control needs:
Straight Slots: Cost-effective, uniform design, suitable for moderate sand
conditions.
Keystone Slots: Tapered shape prevents plugging and offers superior sand
retention.
Patterns include straight-line, staggered, and gang
(multi-staggered) layouts. The gang pattern is ideal for
high-torque and thermal applications such as SAGD wells.
Key Features:
- Improves well integrity and inflow performance
- Reduces sand-related damage and downtime
- Compatible with various threading types (STC, LTC, BTC, NU, EU,
etc.)
- Durable construction available in multiple steel grades
Quality Assurance:
All pipes are manufactured under API/ISO quality systems and are
available with third-party inspection (SGS, BV, DNV).
FAQ
Q:Where is your company located? Could I visit your factory? A:Our company is located in Xinxiang city,Henan province, China.
Sincerely invite you to visit our factory. |
Q:Can you supply the sample? A:We could offer the sample for free but the cost of freight is
extra. |
Q:What payment term do you accept? A:T/T ,L/C at sight, Western Union, and other mainstream payment
term. |
Q:How about the delivery time? A:Usually within 3-30 days after receiving the deposit. |
Q:IS factory or trading company? A:We has own factory, professional on wedge wire screen and filters
production and export for more than 10 years. |
Q:How about the MOQ? A:MOQ according to different product, sometimes MOQ decided by
customer. |
Q:Where is your Market? A:We have been exporting to more than 120 different countries and
regions all over the world. |
Q:How about your sales service? A:Market promotion support and best after sales service will be
offered to every customer. |
Q:How does your factory do regarding QC? A:Quality is priority. We always consider quality as the most
important thing during the whole production process. Our factory
has gained ISO9001. |
Q:Can you offer OEM or design services? A:Yes, We design and manufacture our products by ourselves. We can
make OEM according to your requirements, including packing, logo
print etc.
|
