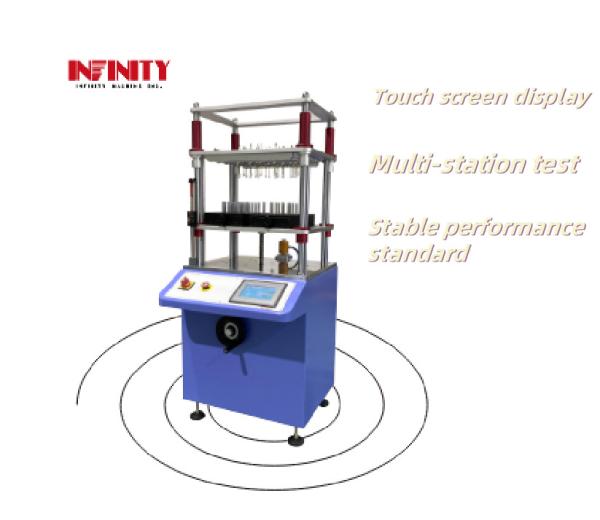

High-speed Button Testing Machine
Model Number :IN-3302
Application:
The device is used for computer keyboard Keyboard, Note-book
keyboard, mobile phone, calculator, e-book, electronic dictionary,
game controller, remote control and other electronic products.
Features:
1.The Japanese Panasonic was used®Seromotor + SHIMPO®Planetary speed reducer drive, low noise, durable use;
2.Using the load adjusting probe hitting button, and equipped with
a special probe load correcting table and electronic weight
correcting the load adjusting probe output, the striking force can
be accurately controlled and the mechanical fatigue life of the key
can be truly reflected.
3.The machine adopts Japan THK® high steel bearing steel as
support, Japan THK® linear bearing transmission, durable use; The
test table is made of aluminum Anodized treatment, wear-resistant
surface texture, equipped with porous for keyboard clamping
positioning;
4.Japan OMRON®7"TFT color touch screen +Mitsubishi® PLC control,
English and Chinese operation interface, two test modes: continuous
test mode -- rapid continuous test mode; Intermittent test mode --
to meet the test requirements of key press hold time, you can set
the press hold time 0.1~99.99sec, rise (head off the button)
residence time 0.1~99.99sec. Test times 0~99999999 times can be
set, with power failure memory function, reach the set number of
automatic stop. Test speed: 60~360 times /min in continuous test
mode, 5~100 times /min in intermittent test mode.
5.Using high rigidity guide groove, can be moved back and forth,
the measuring head can be moved left and right, basically can
measure any keys.
6.Built-in force sensor, can real-time test head pressure, more
accurate and convenient.
Specification parameters:
| Project | Specifications |
| Test the trip | 10mm |
| Press head diameter | 6 or 8mm (Shaw hardness 65, black conductive silicone head,
spherical contact surface) |
| Pressure rod A | 750gf (10 sets) |
| Pressure rod B | 1500gf (10 sets) |
| Pressure rod C | 3000 gf (10 sets) |
| At the same time to hit the number of products | 12 |
| Electronic called capacity | 5000gf precision level 1 |
| Worktop lifting range | 0~150mm hand lift, match the height ruler |
| Sample holding range | 460x320mm |
| The installation scope of head measurement | 460x320mm |
| Keep the pressure down for time | 0.1 to 99.99 seconds (setting is available) |
| Rising stay time | 0.1 to 99.99 seconds (setting is available) |
| Cycle number setting | 0~99999999 times (setting) |
| Test speed | Continuous test mode 60~360 times / min Continuous test mode 5~100 times / min |
| Test pattern | Continuous test mode, intermittent test mode |
| Fittings of a machine | 30 load adjustment measuring heads (can be optional), 10fixed measuring heads (can be optional),load adjustment table
(standard), electronic weighing (5000 gf) standard |
| Volume | W680x D7300 x H1300mm |
| Weight | About 215kg |
| Source | 1∮,AC220V, 5A |
