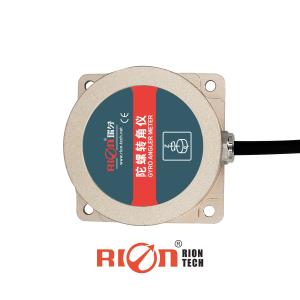

AGV RS485 Angular Mems Sensor Platform Anti Interference

high reliable Industry Grade MEMS Angular Rate Sensor for AVG Vehicle Using

This product is specifically used for robotic cars, vehicle azimuth orientation, and other related applications of AGV., instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

Key Features

• Azimuth angle output

• Strong vibration resistance

• Light weight

• Long life,strong stability

• Cost-effective

• All solid state

• Compact & light design

• RS232/RS485 output optional

• DC9~36V power supply

Application

• AGV truck

• Car Navigation

• 3D virtual reality

• Platform stability

• Auto safety system

• Turck-mounted satellite antenna equipment

• Industrial control

• Robot

2. The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and" line "

1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily. See figure Pic.AB

2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible , see figure Pic.CD

5. After the switch is started, the angular gyro sensor needs to be static 20S, and the initial value of the measuring unit is restored, so as to ensure the measurement precision of the product. If there is no such operation, the product can also be used normally, but can not reach the normal precision standard .
