Front and Rear Customizable Collision Avoidance System for
Construction Vehicles
overview
This intelligent safety driving assistance system calculates the
distance and left and right deviation data, and allows the driver
to receive warnings or perceive possible dangers in advance, and
can actively brake when necessary, effectively increasing driving
safety. It can be widely applied to construction sites of various vehicles
and large mechanical equipment.

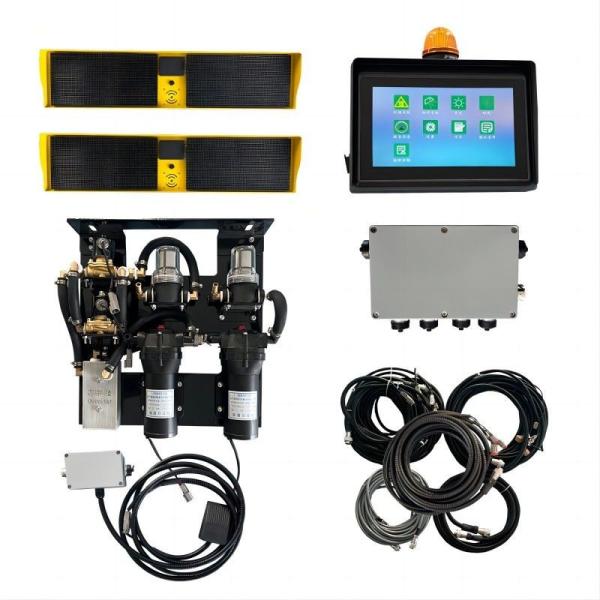

This system consists of five functional systems including radar
detection system, warning system, auxiliary braking system,
human-computer interaction system and equipment operation
monitoring and management system. The radar detection system is
installed at the front and rear of the equipment, and displays and
detects The distance of the nearest object within the set range,
the system performs system calculation and analysis according to
the human-computer interaction setting, sends a designated signal
to remind the driver or actively intervenes in the driving of the
equipment, and builds an effective safety barrier for the
construction site.
System Features
(1) The detection safety zone, alarm distance, and speed parameters
can be set freely and flexibly, perfectly adapting to various
working conditions.

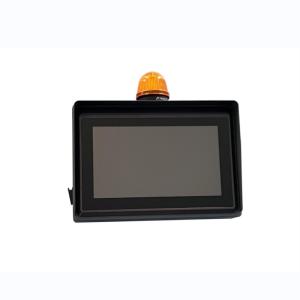

(2) Friendly human-computer interaction interface, easy to install
and use, no need for special training for operators.

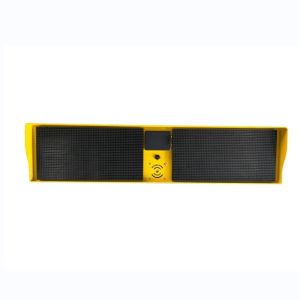

(3) The large external LED screen displays configurable reminder
information to enhance the image of the construction company.
(4) Simple installation, solid structure, dustproof and waterproof
treatment, suitable for various construction environments.
(5) It can be adapted to various domestic and foreign brands of
construction machinery and equipment.
Technical Parameters
| reference item | actual value | Remark |
| voltage | DC10~30V | |
| Working width range | 0.2m~4m | Front and rear and left and right can be set independently |
| Working distance range | 0.2m~10m | Alerts can be set hierarchically |
| Detection working height | >(h-20)cm | At a distance of 2m, hcm is the installation height of the radar
from the ground |
| Number of radars | Front 1 Back 1 | Integrated LED display |
| Radar Detection Range | 20m | |
| Measuring Transverse Scatter Angle | 120° | |
| Measuring Longitudinal Scattering Angle | 14° | |
Construction case
