Customizable roller collision avoidance system, suitable for
various working conditions
1. Overview
This collision avoidance system calculates distance and left and
right deviation data, allowing drivers to receive warnings or
detect potential dangers in advance. If necessary, it can actively
brake, effectively increasing driving safety. It can be widely
applied to construction sites of various transportation vehicles
and large mechanical equipment.
This system consists of five functional systems: radar detection
system, warning system, auxiliary braking system, human-machine
interaction system, and equipment operation monitoring and
management system. The radar detection system is installed in the
front and rear of the equipment, and continuously emits and
receives electromagnetic wave signals to display the distance of
the nearest object within the detection range. Based on the
human-machine interaction settings, the system performs
calculations and analysis, sends designated signals to remind
drivers or actively intervene in equipment driving, and builds an
effective safety barrier for the construction site.
2. System features
(1) The detection safety zone, alarm distance, and speed parameters
can be freely and flexibly set, perfectly adapting to various
working conditions.
(2) Human computer interaction friendly interface, easy to install
and use, no need for specialized training for operators.
(3) External LED large screen displays customizable reminder
information to enhance the image of construction companies.
(4) Easy installation, sturdy structure, dust-proof and waterproof
treatment, suitable for various construction environments.
(5) Can adapt to various domestic and foreign brands of
construction machinery equipment.
3.technical parameter
|
| item | parameter | remarks |
| supply voltage | DC10~30V | |
| Working width range | 0.2m~4m | Front, back, left, and right can be independently set separately |
| Working distance range | 0.2m~10m | Warning settings can be graded |
| Detecting working height | ＞(h-20)cm | At a distance of 2 meters, hcm is the installation height of the
radar above the ground |
| Number of radars | Front 1, back 1 | Integrated LED display |
| Radar detection range | 20m | |
| Measure the lateral scattering angle | 120° | |
| Measure longitudinal scattering angle | 14° | |

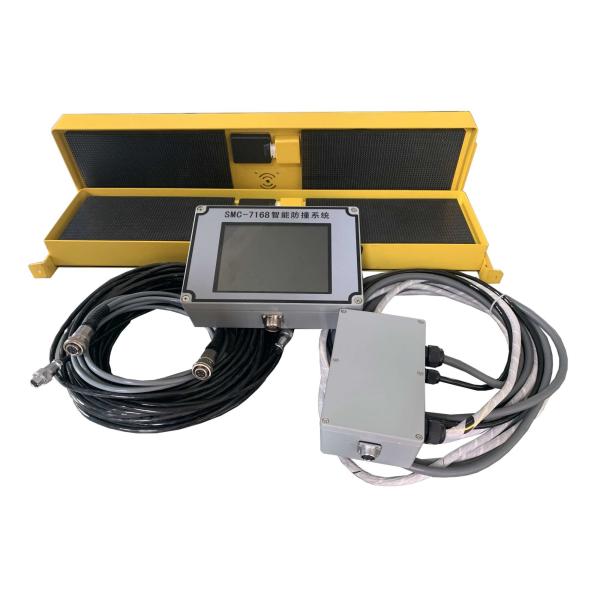

4.System Configuration Table
|
| item | number | remarks |
| 10 inch high-definition display screen | 1 | |
| Control junction box | 1 | including wiring harness |

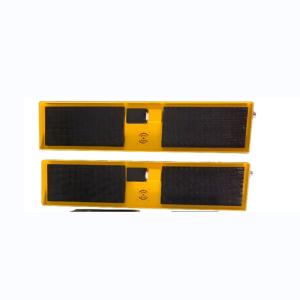

| Radar detection sensor | 2 | Integrated LED display and buzzer,Dual screen display, capable of
alternating flashing |

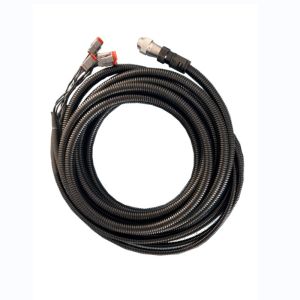

| Wire harness | 2 | Adopting a corrugated pipe set, it can be wear-resistant, oil
resistant, and high-temperature resistant |
| Solenoid valve | | Configure and use auxiliary brakes as needed |
| Electromagnetic valve plug | | Common models do not require damaging the original vehicle cables
and can be directly plugged in and out for use |
